HDMI Camera >> 16MP HDMI USB Industry Microscope Camera TF Video Recorder + 100X C-mount Lens + 56 LED Light
View Larger Image
Share your images of this product

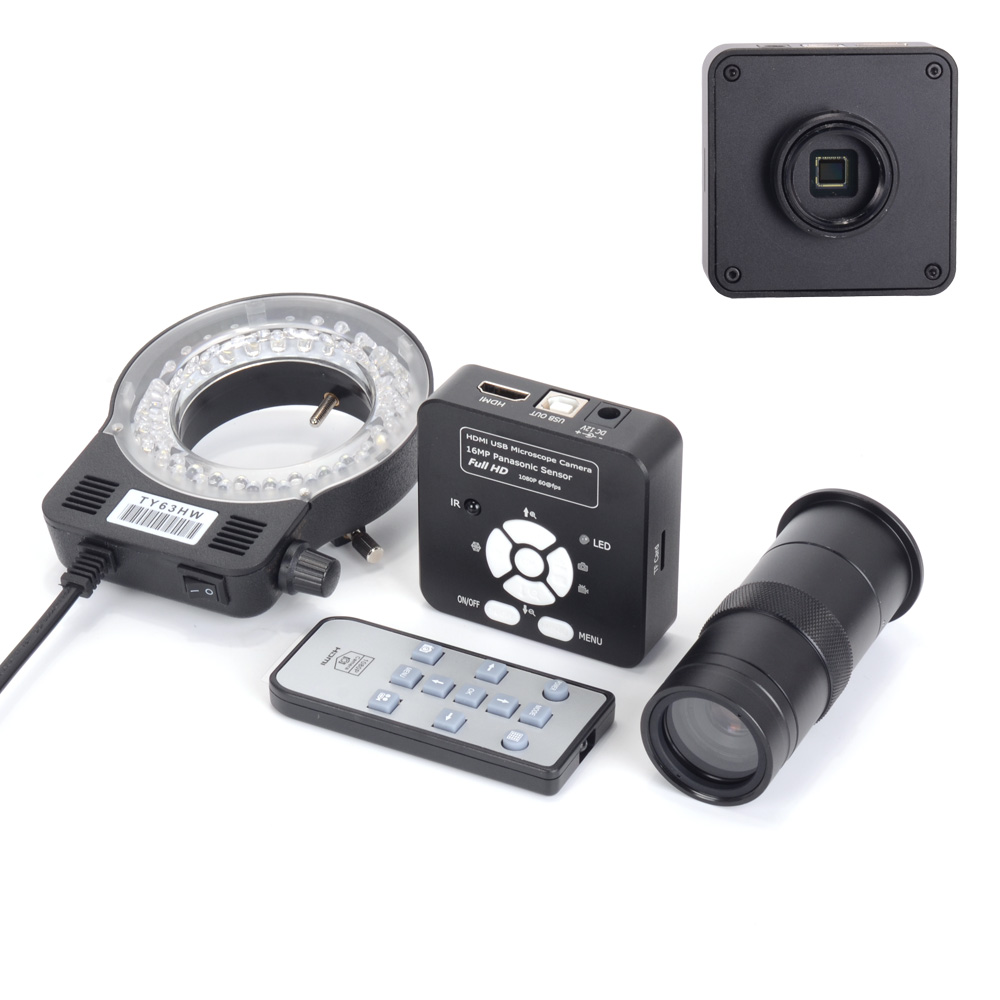

16MP HDMI USB Industry Microscope Camera TF Video Recorder + 100X C-mount Lens + 56 LED Light
Price : US $ 159.11 238.63

SKU : 1812035721
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:

For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.

For HDMI ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Feature:

Model: Camera with HDMI USB2.0 two output

Image format: jpg

Image resolution: 4608*3456 (for TF card) 1920*1080 @ 60FPS(for TF card)

Video format: MOV(for TF card)

Video recorder: 1920*1080 @ 60FPS (for TF Card)

HDMI Video resolution: 1920*1080 @ 60FPS

USB Video resolution: 1920*1080 1280*720 640*480 320*240 @ 30FPS

White Balance: Auto/Manual

Light: Auto/Manual

Exposure: Auto/Manual, value adjustable

Color: Color

Morror: Left/right,Up/Down

Freeze: Support

OSD: English/Chinese/French/Spanish/Japanese/German

Line: different color,5 horizontal line , 5 vertical line, any positions

Specification:

Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch

Effective pixel:16 megapixel

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition: FULL HD

Housing: metal

Lens: C/CS

Video format: MP4, AVI

Digital Zoom: Support

Brightness control: Auto/manual

Color:R/G/B adjustable

Film and record: Support

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line:

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line, any positions

TF card interface: Max 64G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

TF card interface: Max 64G

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

NOTED!!!
TF card storage is only for HDMI output. USB output will be storaged in PC.


C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-130mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g


LED Lights:

The 110V-220V 56LED ring light is designed especially for stereo microscope, and is an excellent companion to various kinds of microscopes and camera. It can offer an optimum amount of lights to the microscope or camera when additional light sources are required or there was not enough light! Inspection and quality control is no longer a problem to view surface defects and overcome the visibility problems related. It can also used as light source for cameras to focus while hunting viewing in dark places or areas.

110V-240V 56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: AC100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Also we have black color, you can leave us a message when you pay.
LED Lamp Chip(Cool White)


Package including:

1 x Microscope Camera

1 x 12V/1A Power supply

1 x USB line

1 x remote control

1 x Software DISC

1 x 100X Zoom C-mount Lens

1 x LED Light with power supply
