HDMI Camera >> NEW 16MP HDMI USB Digital Industry Video Microscope Camera Set + Big Stand Universal bracket +180X C-MOUNT Lens+ 144 LED Lights
View Larger Image
Share your images of this product

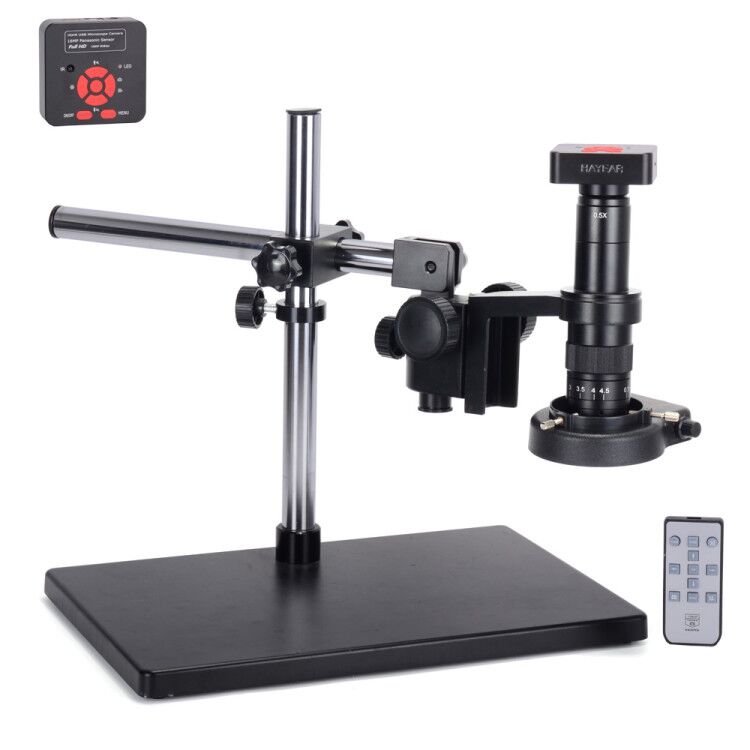

NEW 16MP HDMI USB Digital Industry Video Microscope Camera Set + Big Stand Universal bracket +180X C-MOUNT Lens+ 144 LED Lights
Price : US $ 296.21 378.72

SKU : 1812200808
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting1: When use USB connection, please make sure no TF card in the camera, otherwise computer will define the camera as USB disk,  can't find it as new device.

2:For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.

3:For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Specification:

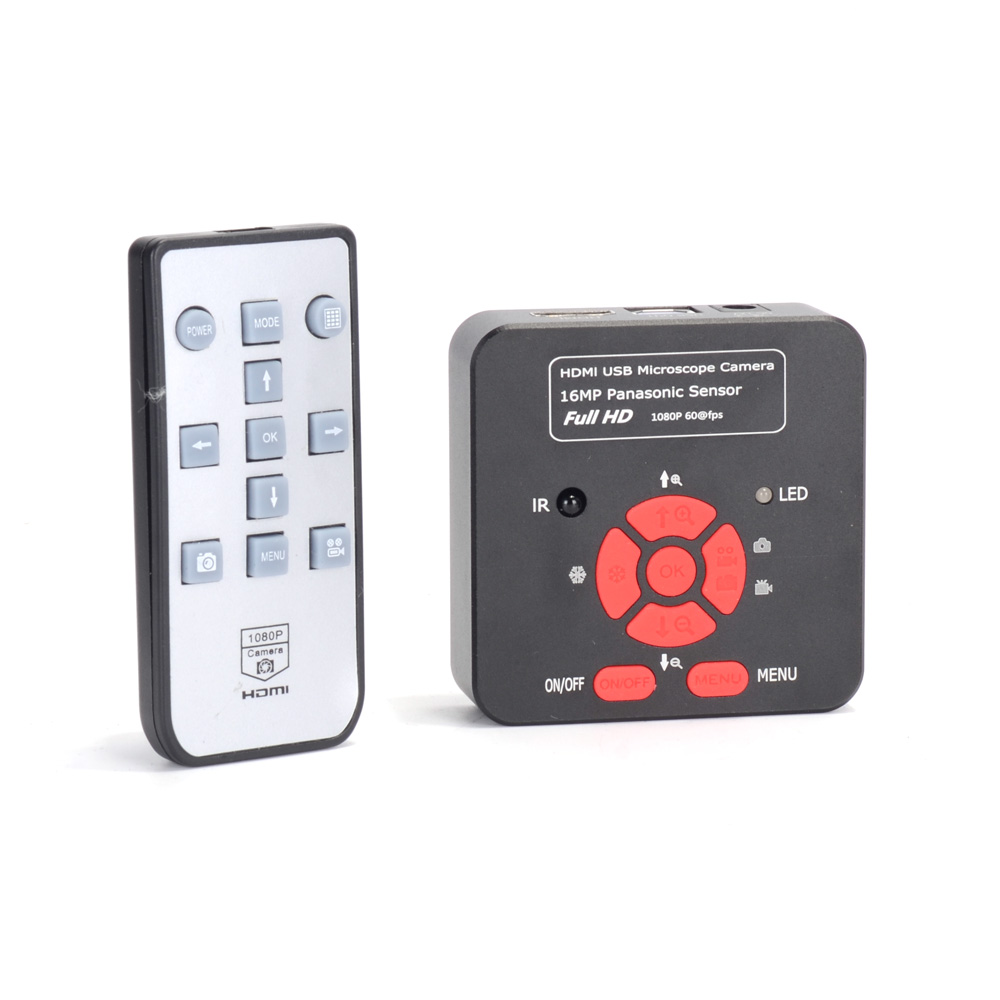

Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch

Pixel size:1.335μm × 1.335μm

Frame rate:60fps

Definition: FULL HD

Housing: metal

Lens :C/CS

Video format: MP4

Digital Zoom: Support

Brightness control: Auto/manual

Color: R/G/B adjustable

Film and record: Support

Cross cursor: Support multi-color, size adjustable

Support multi-color, 5 pcs of transverse lines/vertical lines, movable

Different color,5 horizontal line , 5 vertical line, any positions

TF card interface: Max 64G

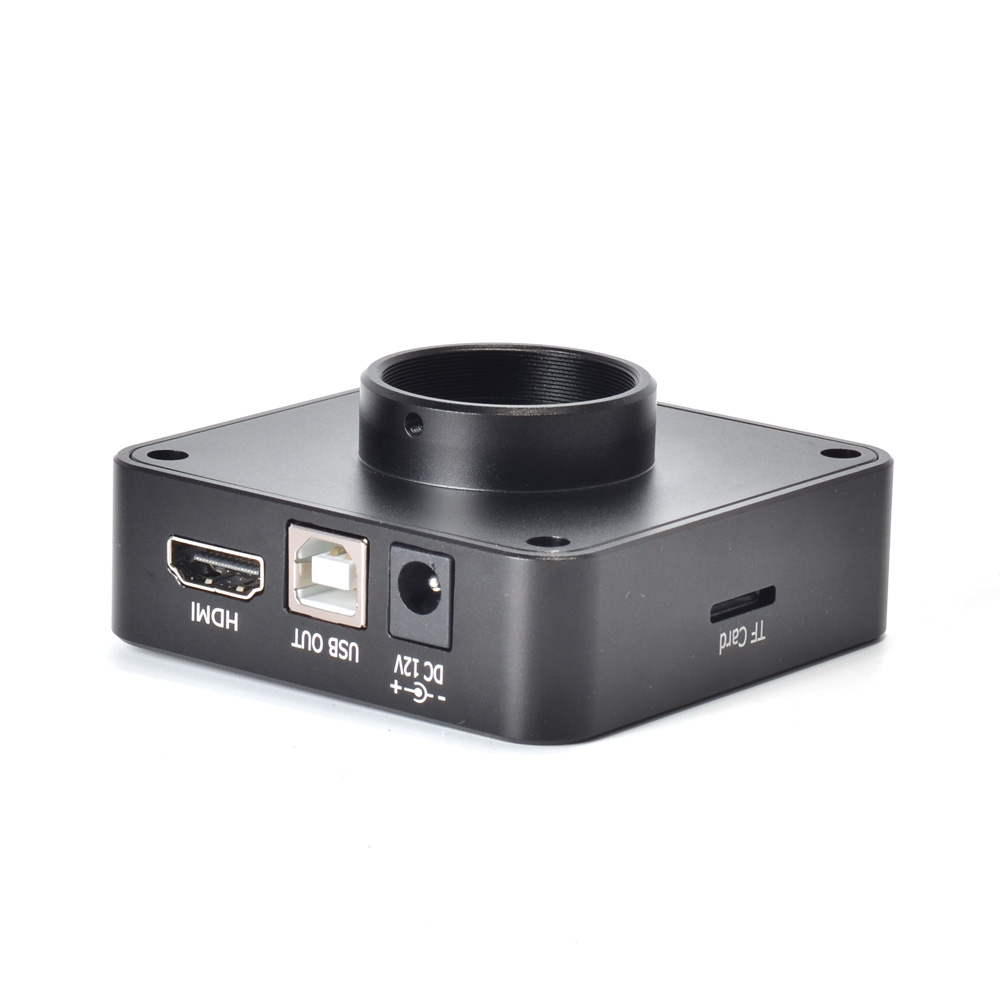

HDMI interface: Standard HDMI output (Type A)

USB interface: Standard usb2.0 interface (Type B)

Input Voltage: DC 12V

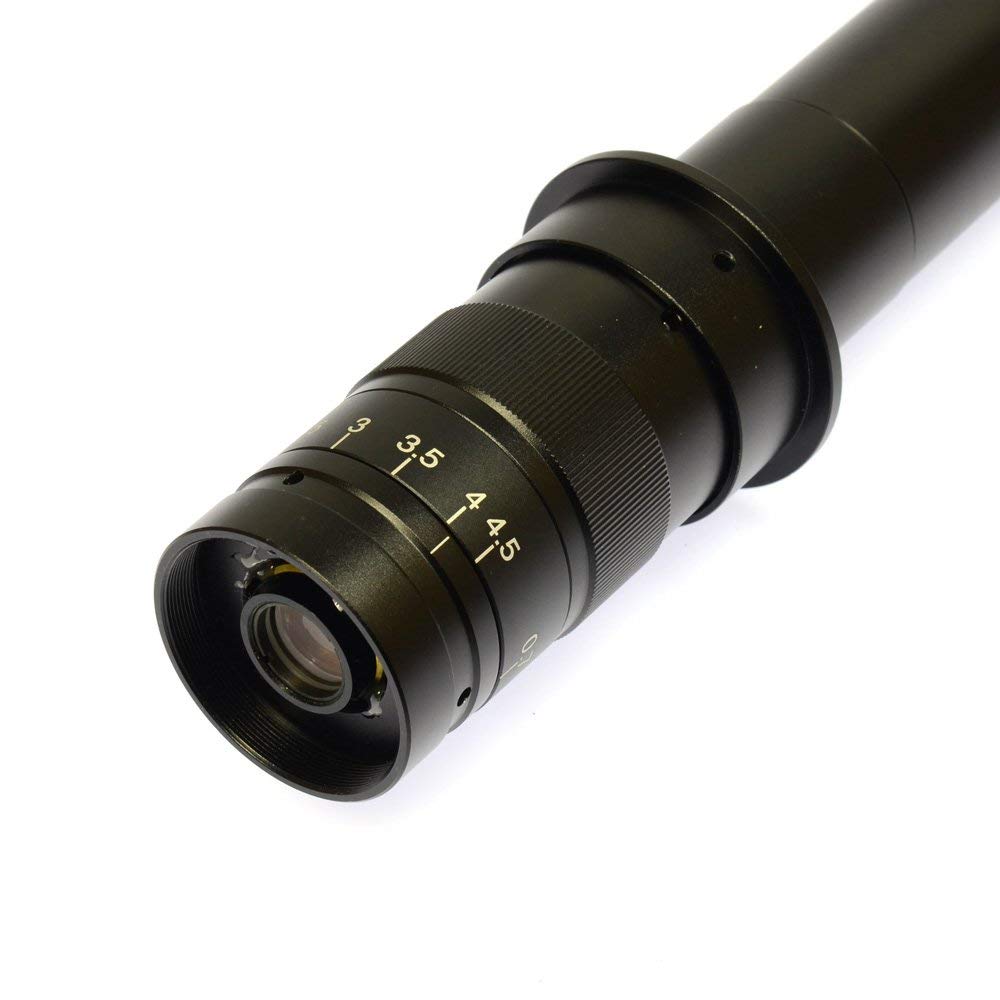

C-MOUNT Lens:

Working distance: 95-125mm

zoom c-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

Weight: 500g


144 LED Adjustable Light:

Lighting direction changeable

Variable intensity control

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-45mm


Package Including:

1 x Camera

1 x power supply

1 x USB line

1 x Software DISC

1 x Zoom C-mount Lens

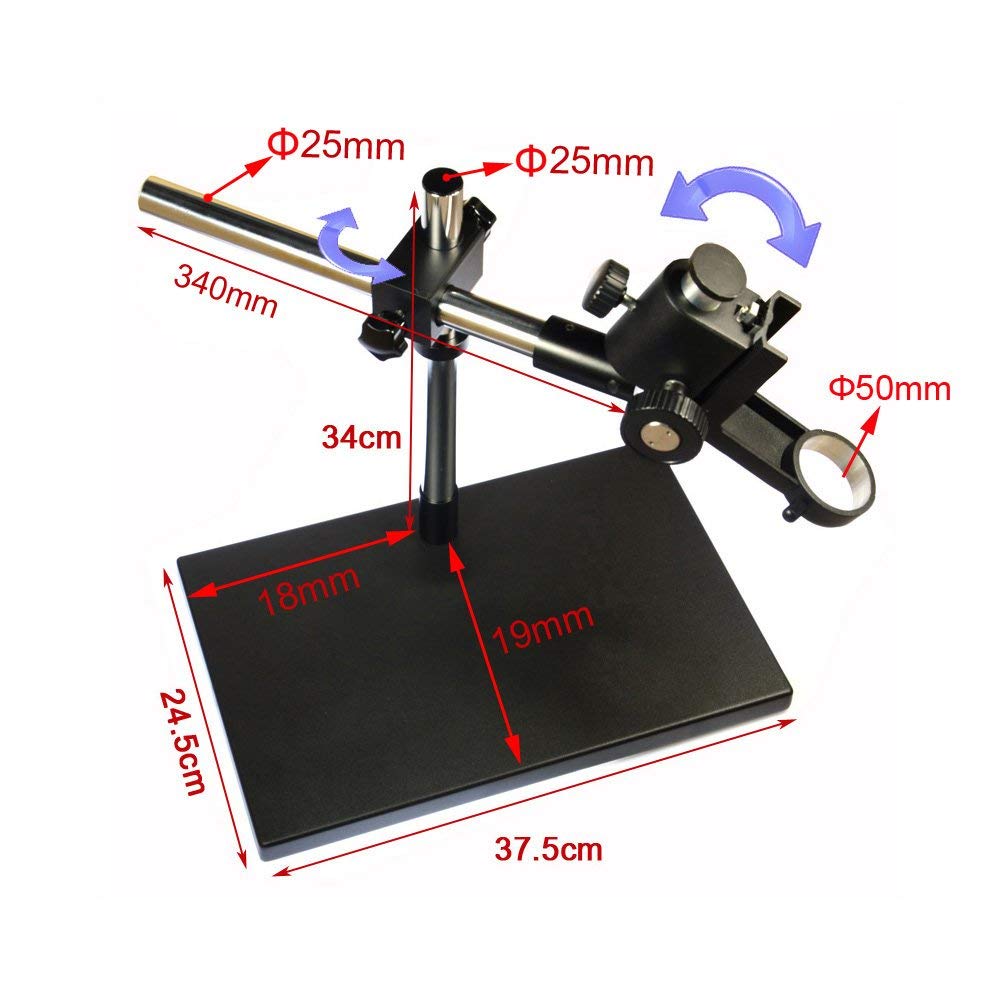

1 x Camera Stand

1 x 144-LED Ring Light with Power Adapter
