USB Camera >> HAYEAR 5.0MP USB Industrial Microscope camera set with measure software + 100X c-mount zoom lens + 40led illumination + camera stand
View Larger Image
Share your images of this product


HAYEAR 5.0MP USB Industrial Microscope camera set with measure software + 100X c-mount zoom lens + 40led illumination + camera stand
Price : US $ 129.75 185.64

SKU : 0911182823
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Specification:

Model: USB output
Sensor: 5.0mp,1/2.5 inch
Image equipment:CMOS
Sensor: 5.0MP
Full Resolution: 2592 x 1944
Frame rate:(MJPG) 2592 x 1944@12FPS ;2048x1536@15FPS ; 1920x1080@15FPS ;1600x1200@15FPS; 1280x720@15FPS;1280x960@15FPS;1024x768@30FPS; 800x600@30FPS;640x480@30FPS
Frame rate:(YUY2) 2592 x 1944@2FPS ;2048x1536@2FPS ; 1920x1080@4FPS ;1600x1200@4FPS; 1280x720@4FPS;1280x960@4FPS;1024x768@6FPS; 800x600@15FPS;640x480@30FPS
Pixel size: 2.2μmm x 2.2μm
Support interface: DirectShow,TWAIN,SDK,Redistributable
Programmable control:The size of the image, image photographing, exposure time, gain, GAMMA,
White Balance: Auto
Data output:16bit
Light: Auto
Electronic shutter:20-100000
White balance (dB):38.1 dB,
Color: Color
Sensitivity: 1.4V/lux-sec@550nm
Spectral response:400nm~1000nm


C-MOUNT Lens:
Zoom C-Mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

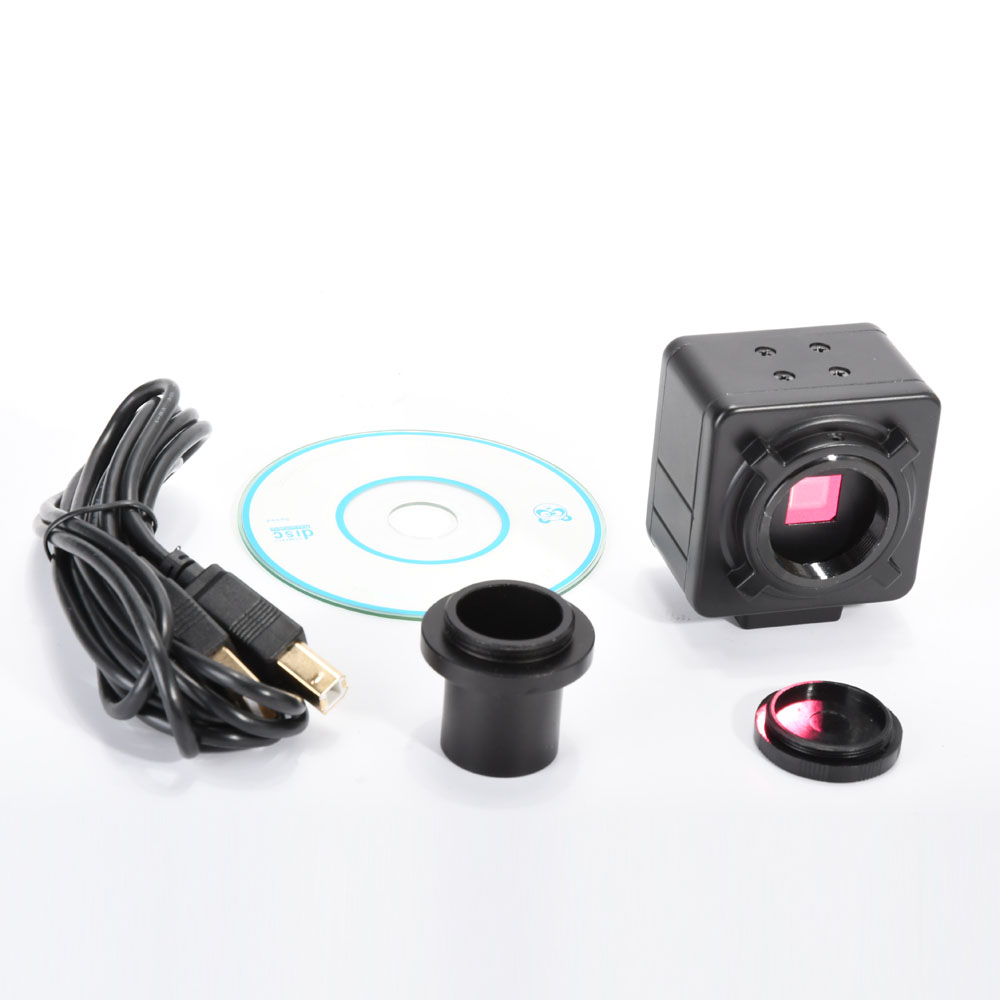

Package including:

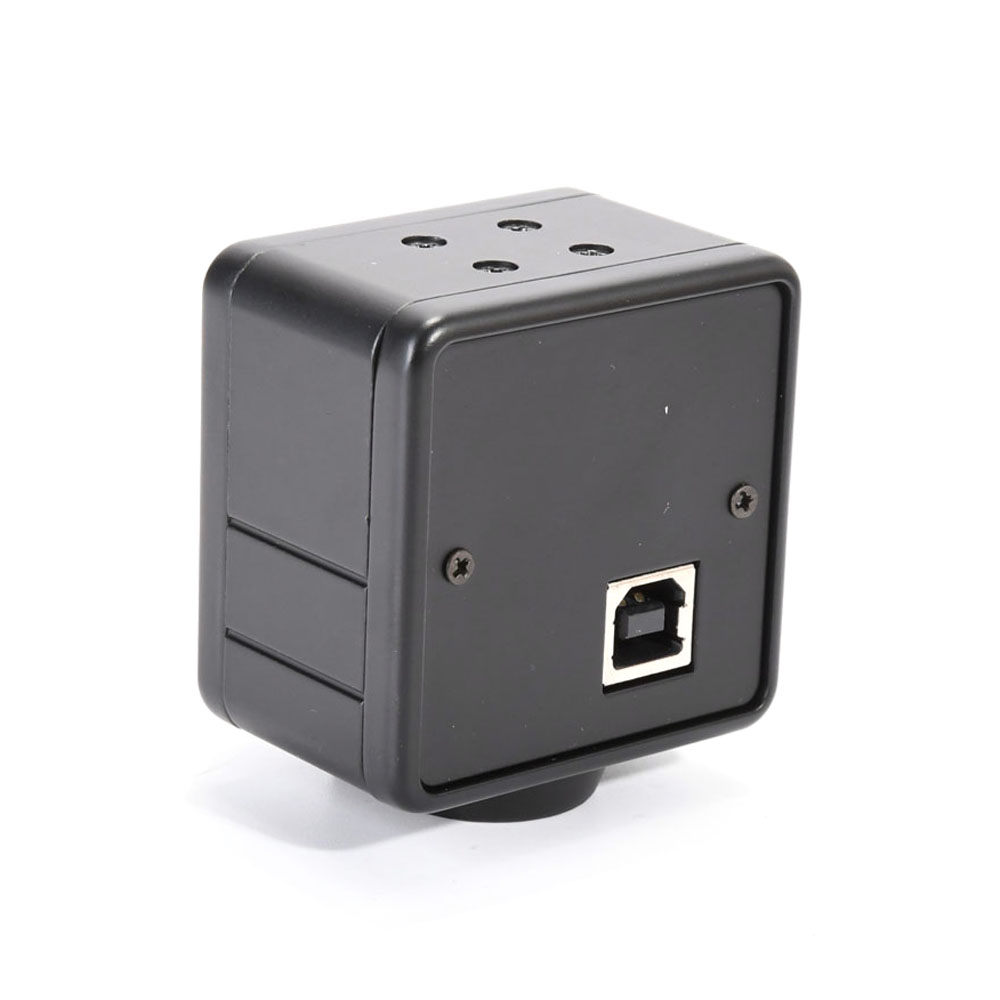

1 x 5.0mp usb camera

1 x usb cable

1 x software disk

1 x ccd adapter

1 x 100X c-mount lens

1 x 40 led light with power adapter

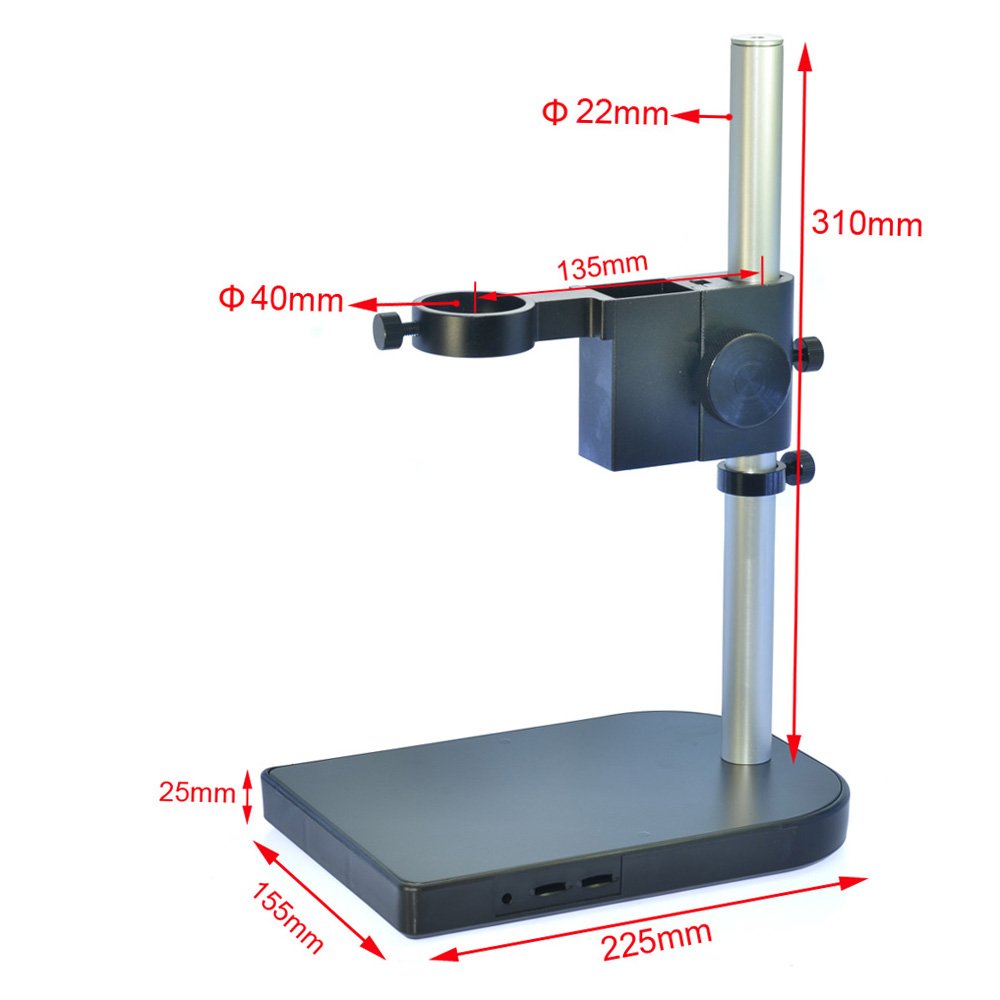

1 x camera stand
