Fiber Tools >> RY-S110D CATV Cable TV Handle Digital Signal Level Meter DB Tester 5-870MHz
View Larger Image
Share your images of this product

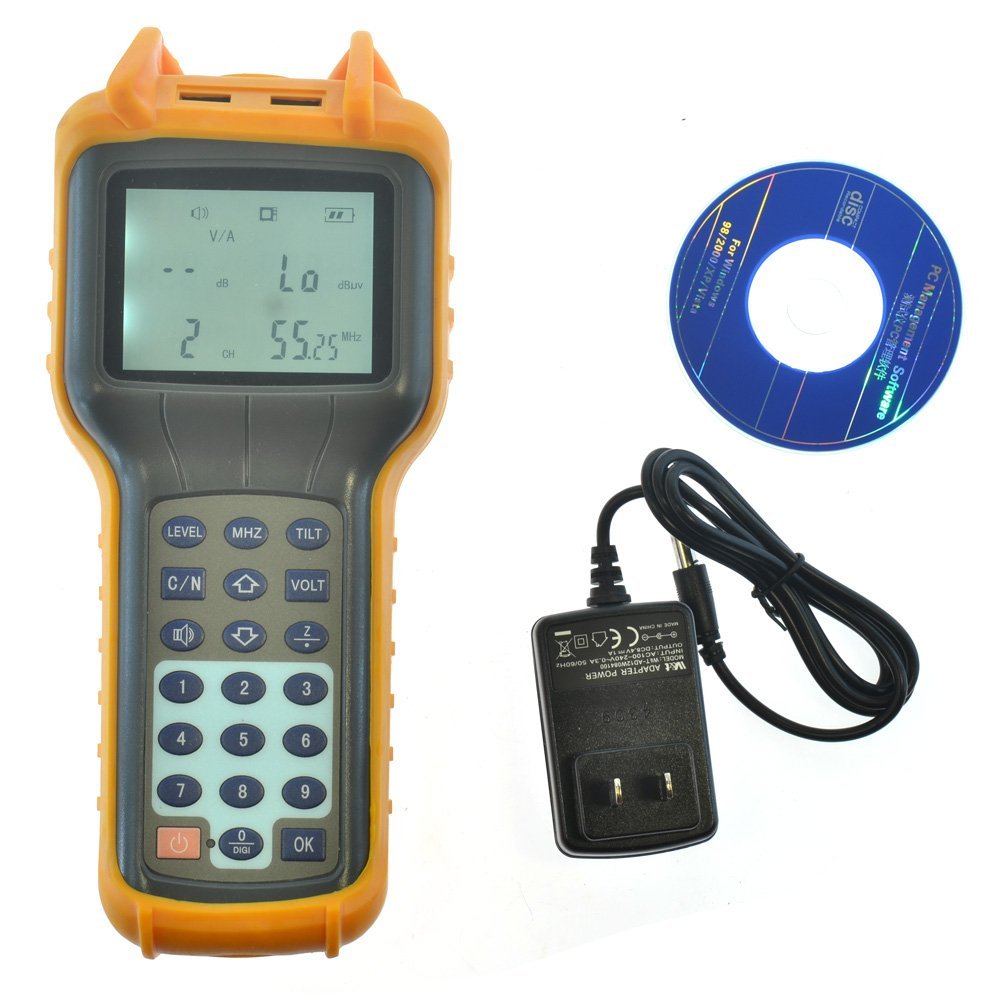

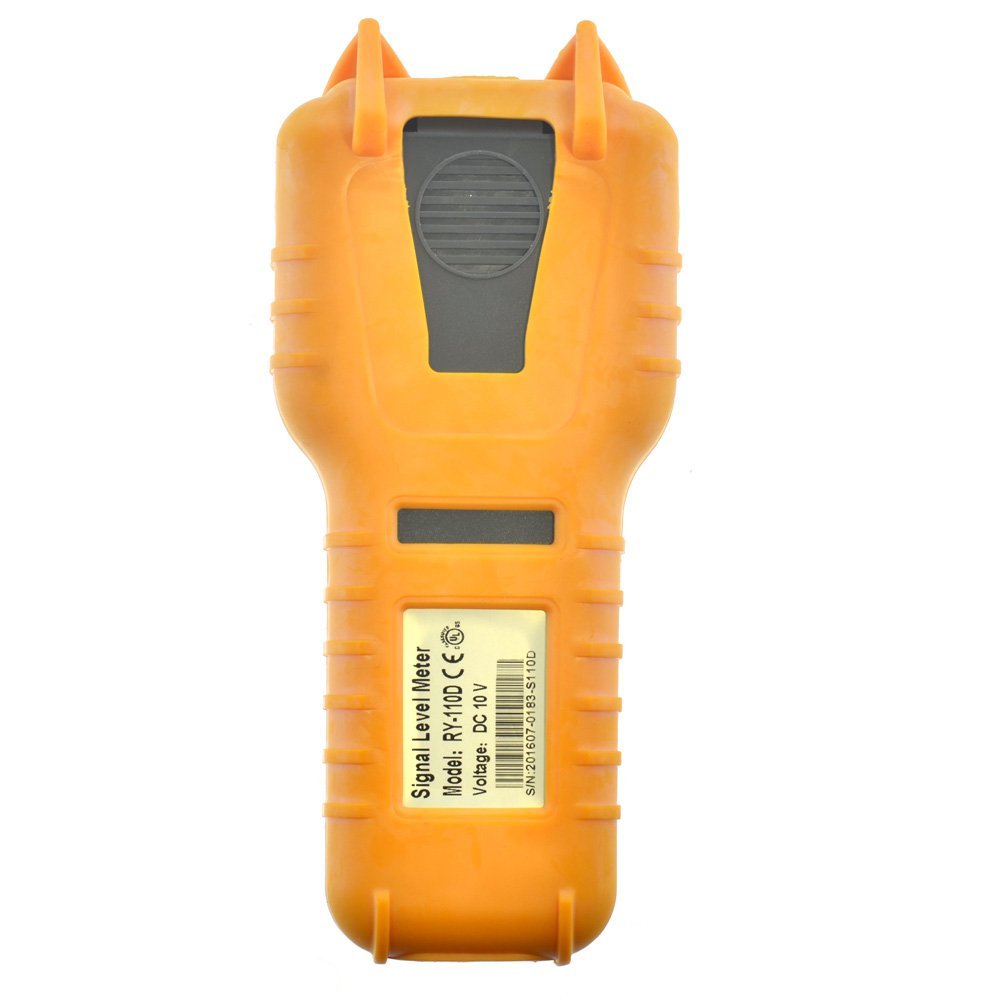

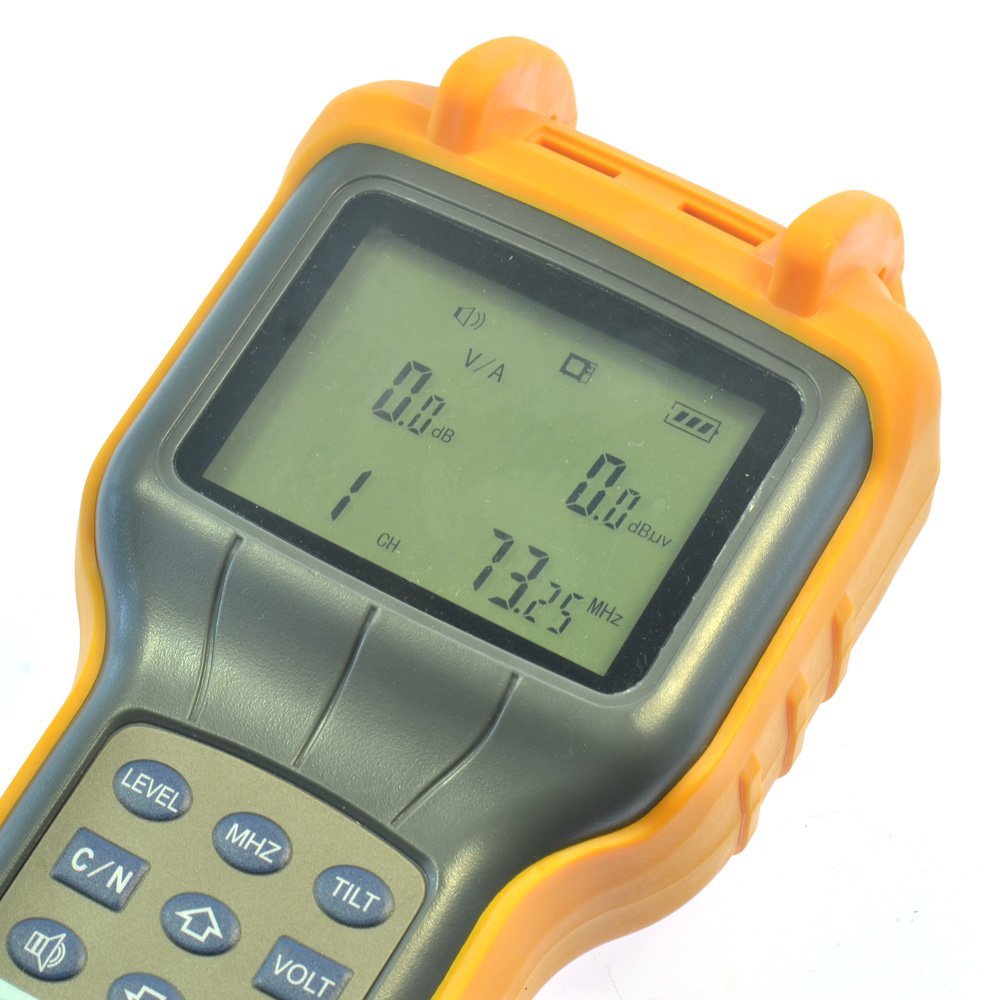

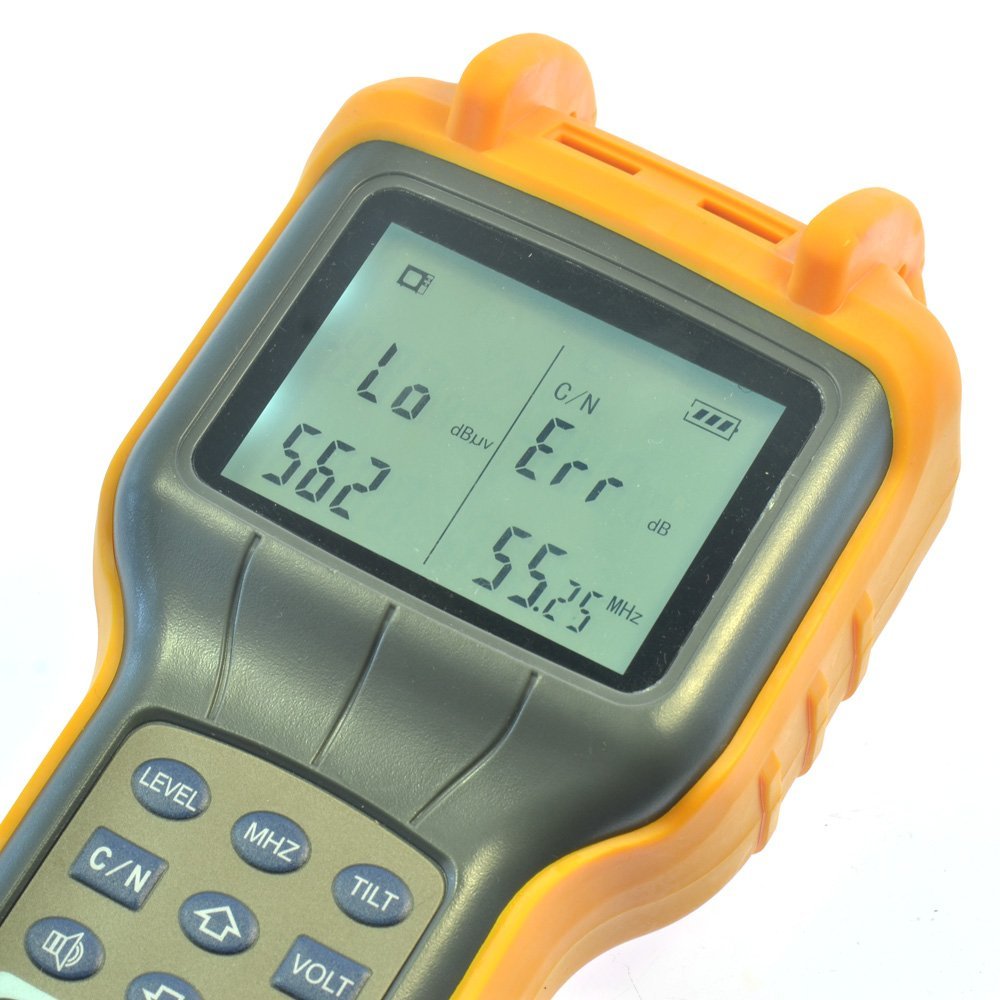

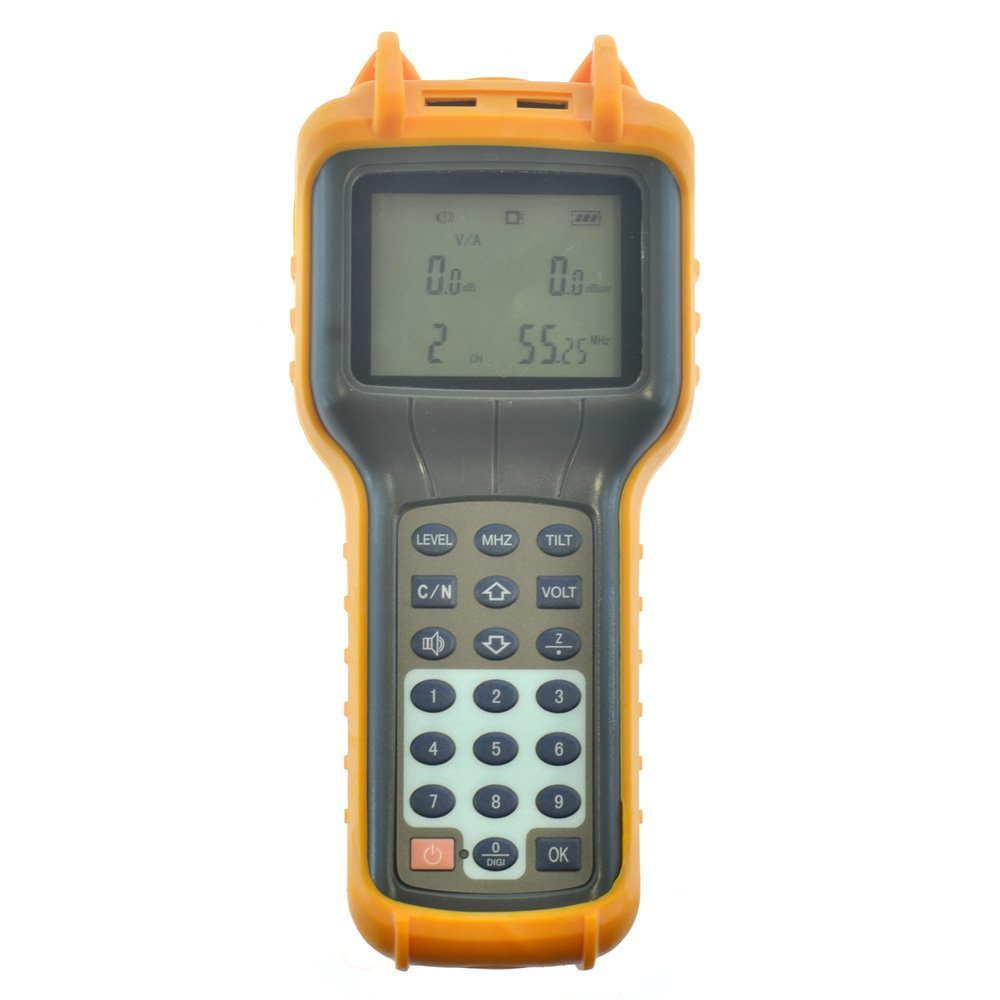

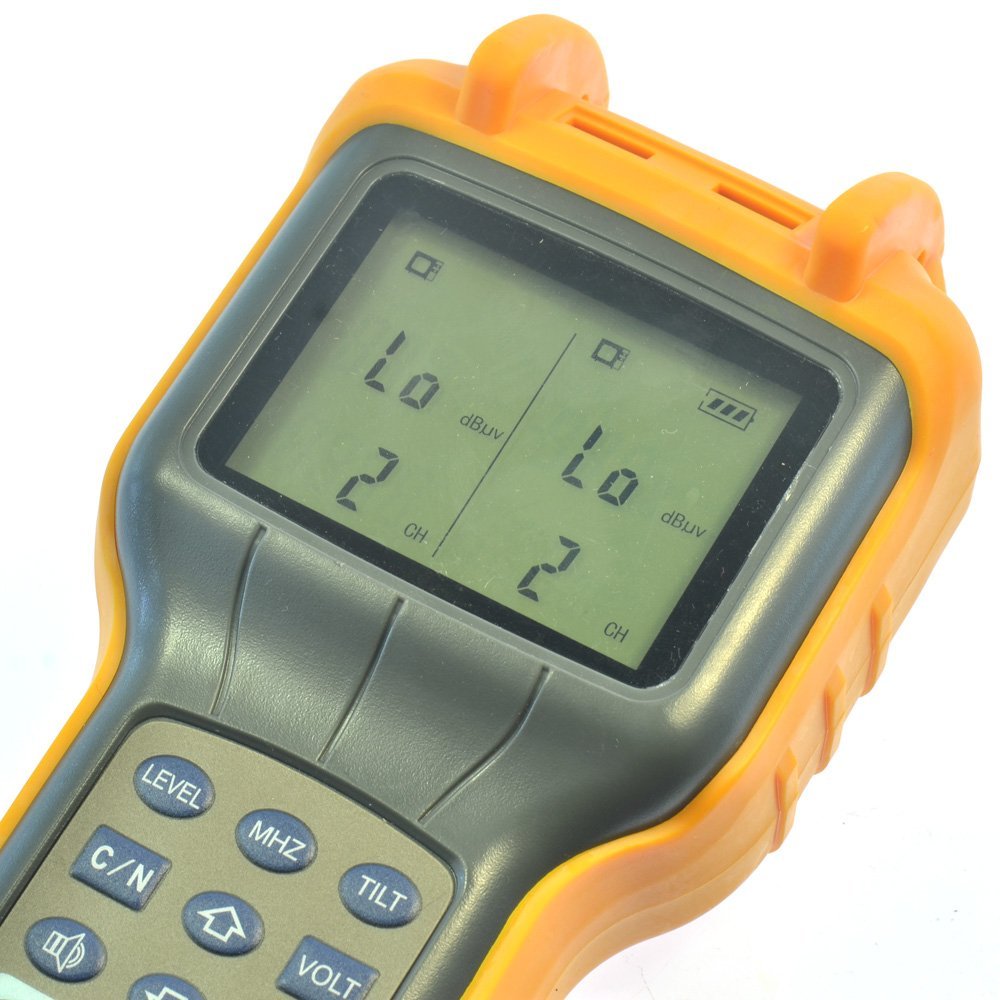

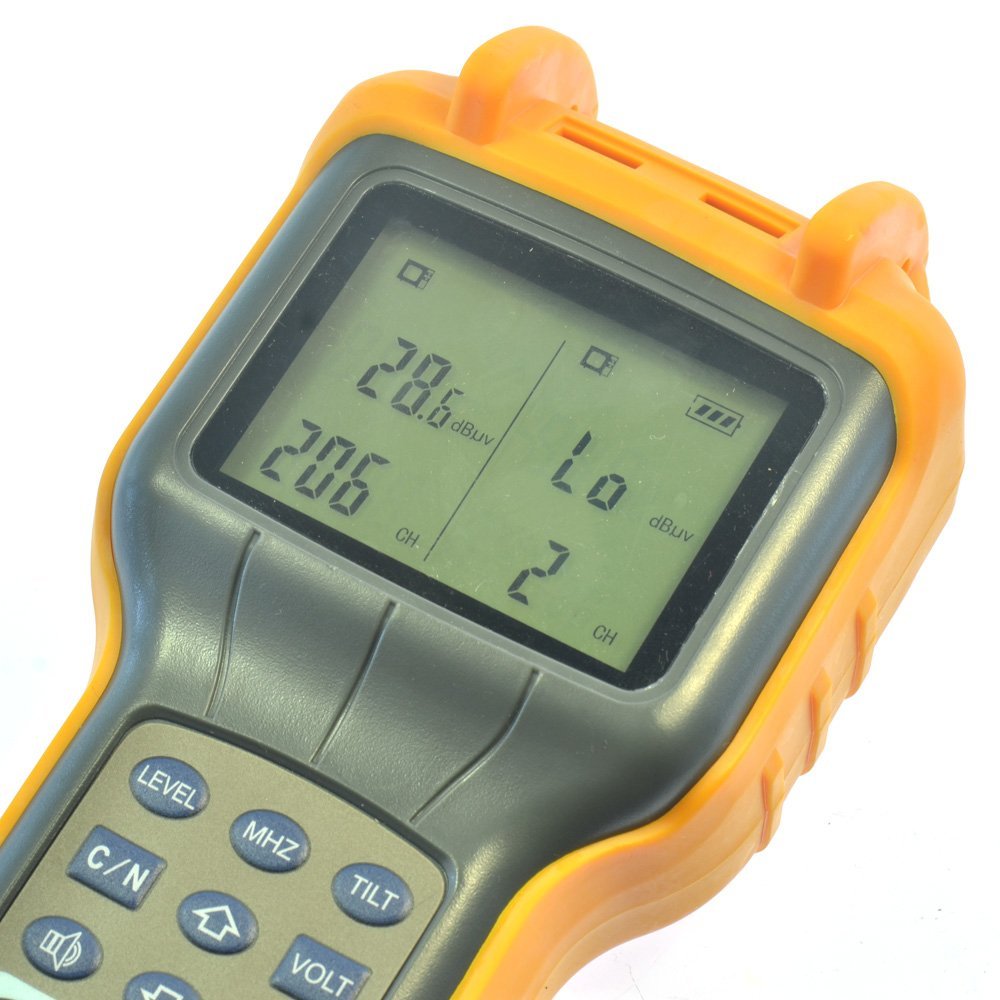

RY-S110D CATV Cable TV Handle Digital Signal Level Meter DB Tester 5-870MHz
Price : US $ 89.99 99.99
SKU : 1804043051
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Notice:This meter has one very thin screen protective film. Sometimes it has scratches in it. But please do not think it is used or second hand meter. It is brand new. If there is scratch, please remove the protective film, then you will see it is brand new meter.


S110/S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110/S110D Signal Level Meter is used to analog channels measurement, with strong comprehensive performances; it employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate; S110/S110D is a compact, small light-weight portable signal level measuring


Frequency / channel
Frequency scope:5~870MHz


U.S. Standard Channel USA STD-CATV
U.S. digital standard channels USA STD-CATV
Frequency accuracy:+- 50 * 10E-6 (20 ℃+-5 ℃)

Level measurement

Measuring range:30dBuV ~ 120 dBuV
Measurement accuracy: +-2dB (20 ℃ +-5℃)
Resolution: 0.5dB

Carrier-to-noise ratio measurement

Measuring range:20dB ~ 50 dB
Signal input range: >=85dBuV
Measurement accuracy: +-3dB (20℃ +-5℃)
Channel scan: 150

Voltage measurement

Input range:1 ~ 100V (AC / DC)
Measurement accuracy:+-2V

Power supply:

battery:7.2V/1500mAH rechargeable battery
AC Supply:AC 90V-220V 50Hz-60Hz
Working time:6h
Charging time:3h
