Microscope Camera Kit >> HAYEAR WiFi Industrial Camera Measurement Microscope Connected to Cell Phone Computer Testing Product Circuit Board Repair Jewelry Appraisal HD Industrial Camera Kit
View Larger Image
Share your images of this product


HAYEAR WiFi Industrial Camera Measurement Microscope Connected to Cell Phone Computer Testing Product Circuit Board Repair Jewelry Appraisal HD Industrial Camera Kit
Price : US $ 249.00 319.00

SKU : 2609141418
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Specification:

ModelHY-5700 Wifi camera
Image sensorSONY CMOS 1/2.3" inch IMX117 1276 MP Sensor
Video Output2K/1080P Full HD (HDMI output); 1080p (USB output)
Sensor size1/2.3" inch
Pixel size1.55 × 1.55 μm
HDMI output1920×1080 @60FPS
Photo resolution7136 × 4016 (3800 MP)；4608 × 2592 (1200 MP)
Video recordingSupports 2.7K video recording 2560x1440; 2K 2304x1296; 1080P 1920x1080
USB interfaceType-C USB 2.0
USB Output resolution1920×1080 30FPS; 1280×720P 30FPS
Wifi Output resolution1920×1080 30FPS; 1280×720P 30FPS (Compatible app: One Snap)
Shutter modeProgressive scan
Spectral response (wavelength)400nm~700nm
Supports driver-free protocolsUSB Video Class(Standard UVC Protocol)
White BalanceSupports one-touch, automatic, and manual white balance
Quick SnapsSupports 38MP still photos
Lens mountStandard CS interface

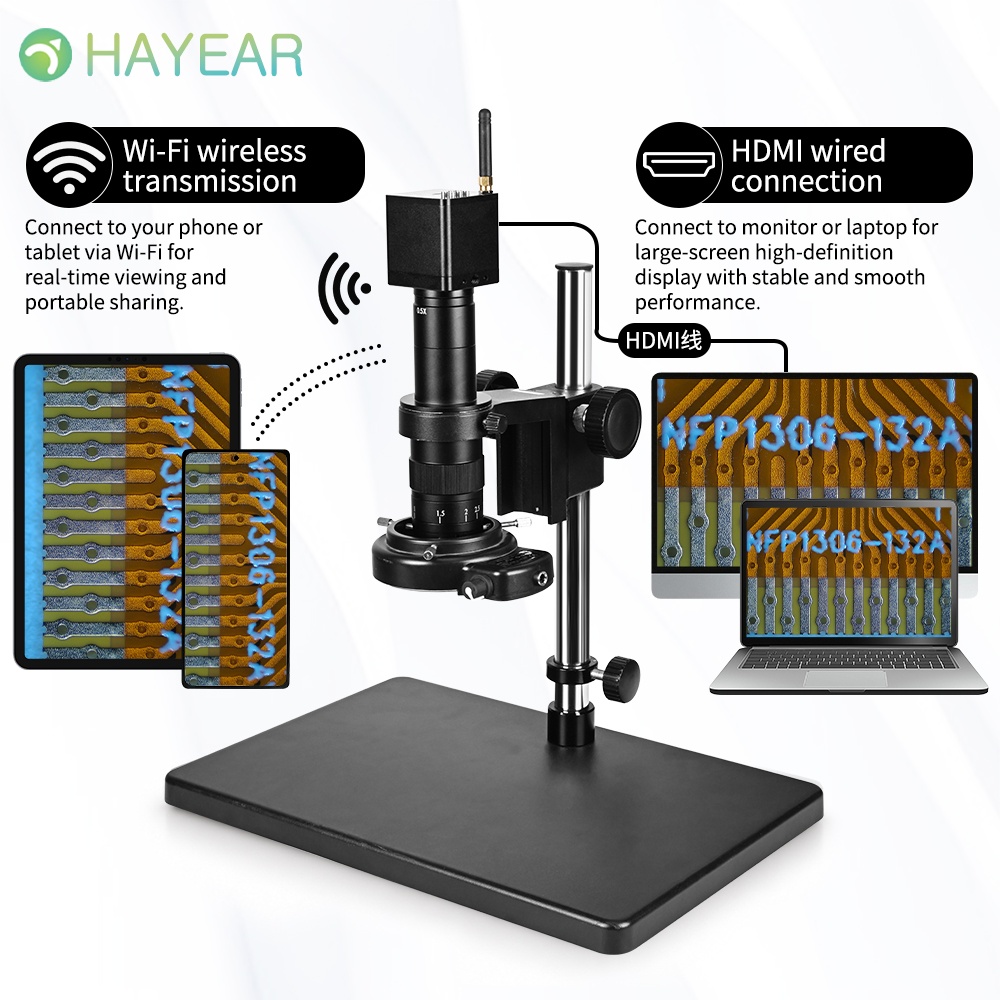

Video output portHDMI/USB Dual-port output
StorageTF memory card, Maximum capacity: 256 GB
PC supportSupport Windows/Mac/ Linux system, PC software with measurement capabilities (included)
Image Resizing5x digital zoom

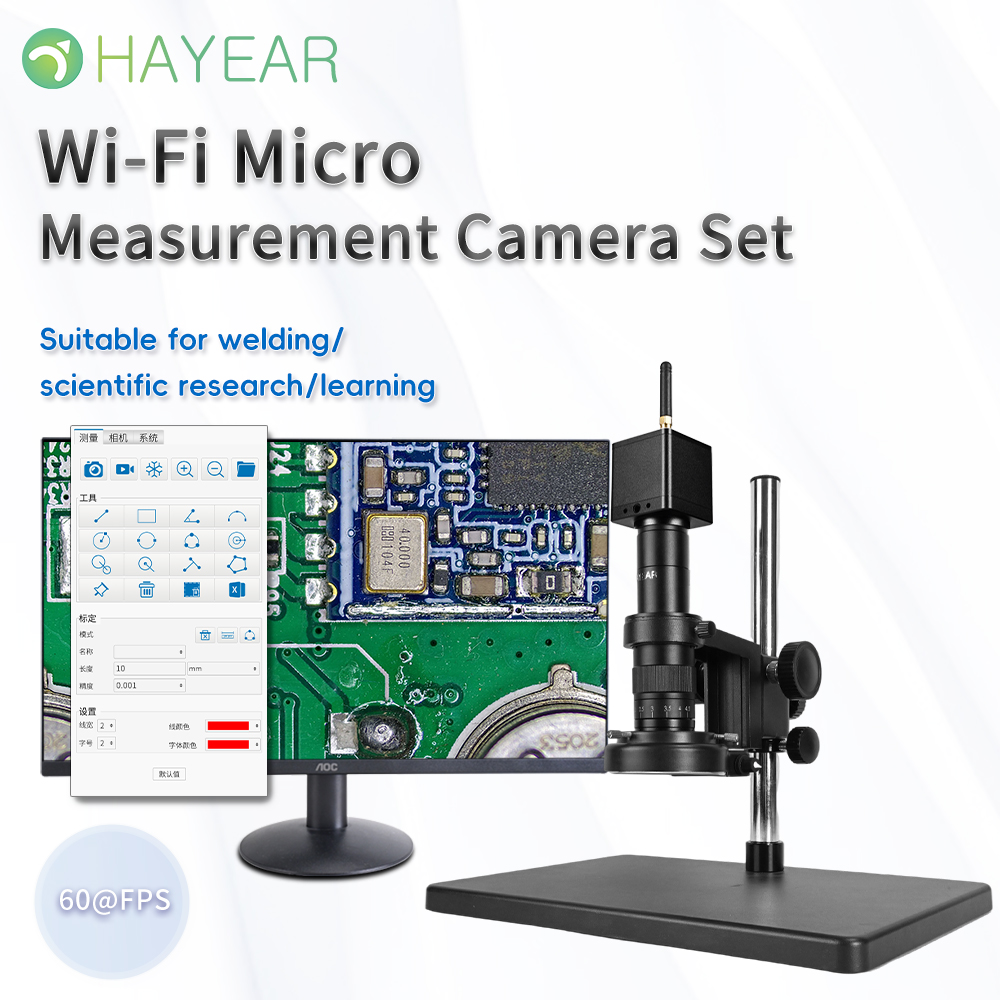

Image MeasurementSupports HAYEAR measurement software
Language SettingsChinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Working voltageType-C 5V/2000mA

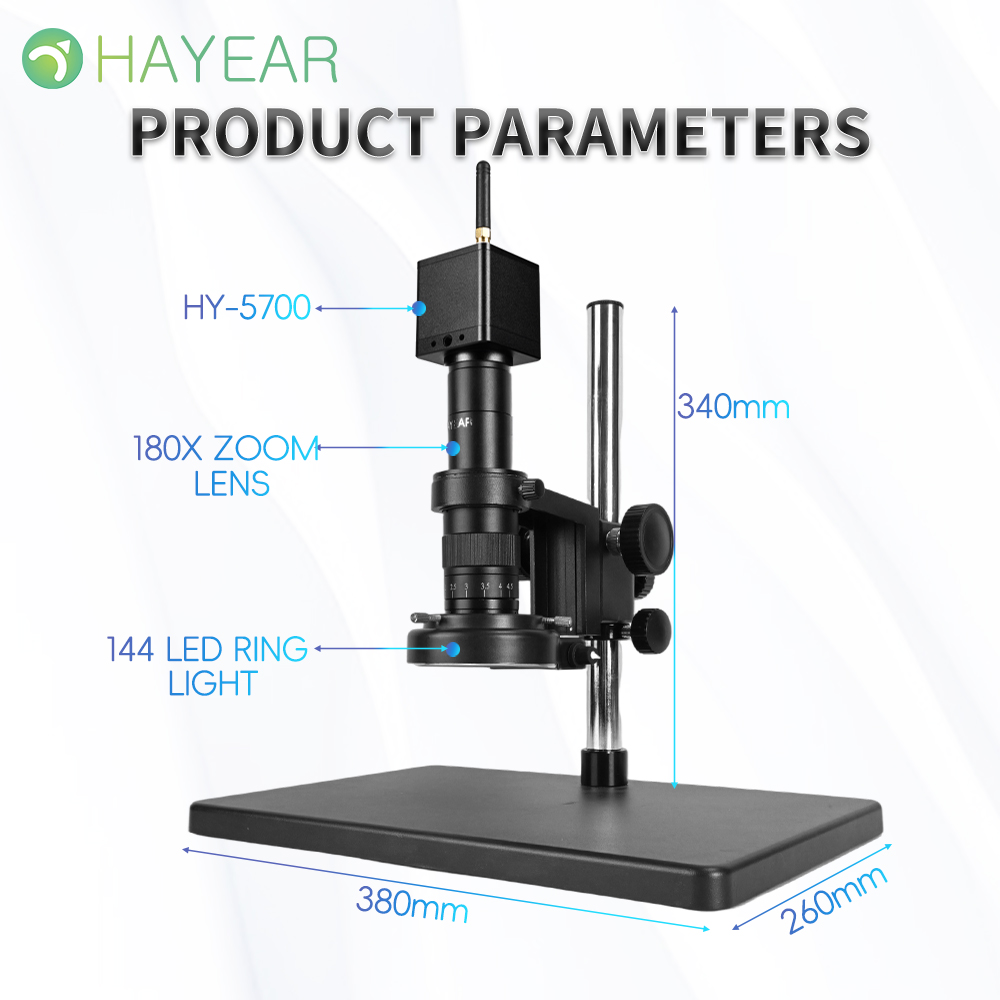

Camera size
Model numberHY-180XA
MountC-Mount zoom lens
Eyepiece0.5X
Zoom range0.7-4.5x continual zoom
Zoom ratios6.5:1
Working distance100-150mm
Magnification20X~180X(21.5 inches monitor)
size170mm(long)*50mm(diameter)
weight500g

144LED ring light lamp:

Input voltage100-240V/50Hz,60Hz
Output voltageDC 12V 1A
Brightness3000olx~4000olx(at working distance is 80mm)
Internal diameter63.5mm
The dimming range0~100%
Working distance50-250mm
ChimneyFull transparency
Package size21×10×4.5cm
Wide aperture diameterMedium 60.5mm
Maximum (power) output3W
Color temperature6500K
Power supplyUS/EU/UK/AU optional
Case colorBlack

10A large base stand:

ModelHY-XDS-10A
Total height340mm(can be extended to 650mm)
Rod dia.25mm
Focus rack dia.50mm
Base size380mm×250mm
Product materialAluminum alloy

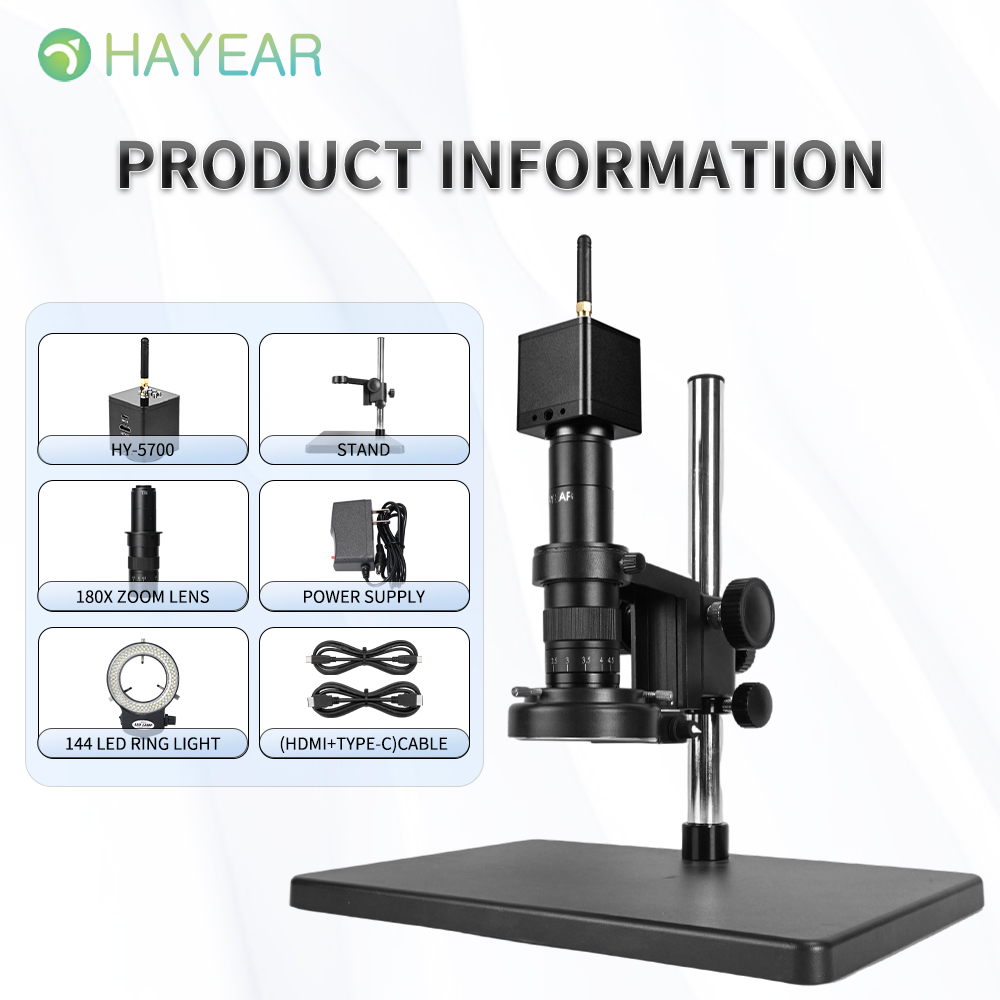

Packing List:

1Microscope Camera
1USB cable
1144 LED Light with power adapter
1Camera Stand
