HDMI Camera >> Full HD 37MP 1080P 2K HDMI USB Electronic Video Microscope Camera+180X C-Mount Lens+60LED Ring Ligh
View Larger Image
Share your images of this product
Full HD 37MP 1080P 2K HDMI USB Electronic Video Microscope Camera+180X C-Mount Lens+60LED Ring Ligh
Price : US $ 212.00 248.00
SKU : 2208132128
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
37MP 1080P Microscope Camera 180X C-Mount Lens HDMI USB Industrial Electronic Digital Microscope for Phone Repair PCB Soldering

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.
2. Comes with a 180X C-mount zoom lens for industrial microscope camera.
3. This 37MP industrial microscope camera is suitable for repairing industry.
4. Adopts high quality metal housing, sturdy, durable and has long life.
5. High resolution and dual output, which makes it more convenient to use.

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 8168*4592 (for TF card)  1920*1080@60FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution:1920*1080 @ 30FPS
USB Image resolution: 1920 *1080 (for PC USB)
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/ right, Up/ Down
Freeze: Support
OSD: English/ Chinese/ French/ Spanish/ Portuguese
Line: different color, 5 horizontal line, 5 vertical line,any positions

Image sensor: 37 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 37 megapixel
Pixel size: 1.43x1.43um
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Video format: MP4, AVI
Encode: H.264 (High Profile)
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color, 5 horizontal line, 5 vertical line, any positions
SNR: Support
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
Lens: C/CS
USB interface: Standard usb2.0 interface (Type B)
180X C-Mount Objective Lens:
Working distance: 100-150mm (without any barlow)
Working distance: 200-205mm (with 0.5X barlow)
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 450g

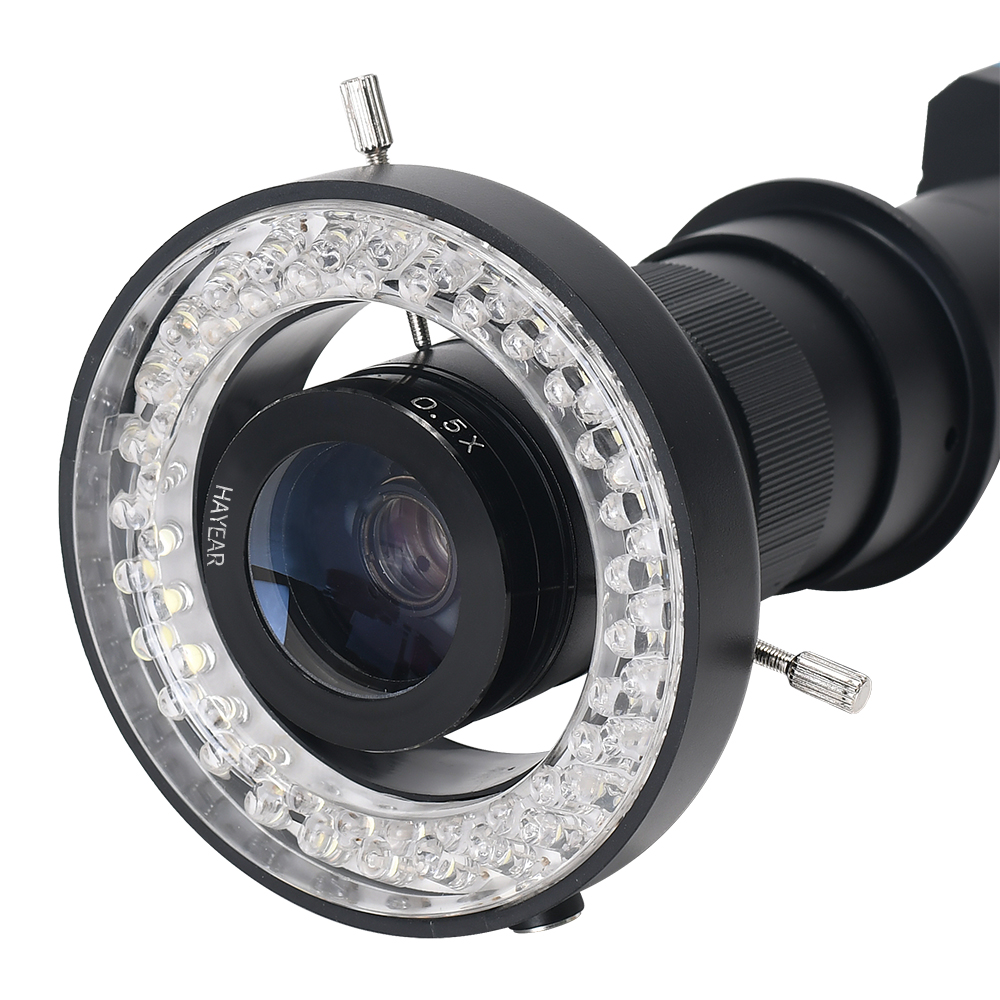

60 LED Ring Light:
Ring Lamp Housing Outer Diameter: Φ98mm
Ring Lamp Housing Connection (Inner Diameter) Size: Φ60mm
Ring Light Housing Thickness Size: 28mm
Ring Lamp Power: about 4.5w-6w
Input Voltage: 100V-240V
Output Voltage: DC10-12V
Brightness Adjustment: 0 ~ 100%
Brightness: 30000-35000LUX
Working Distance: 50-250mm

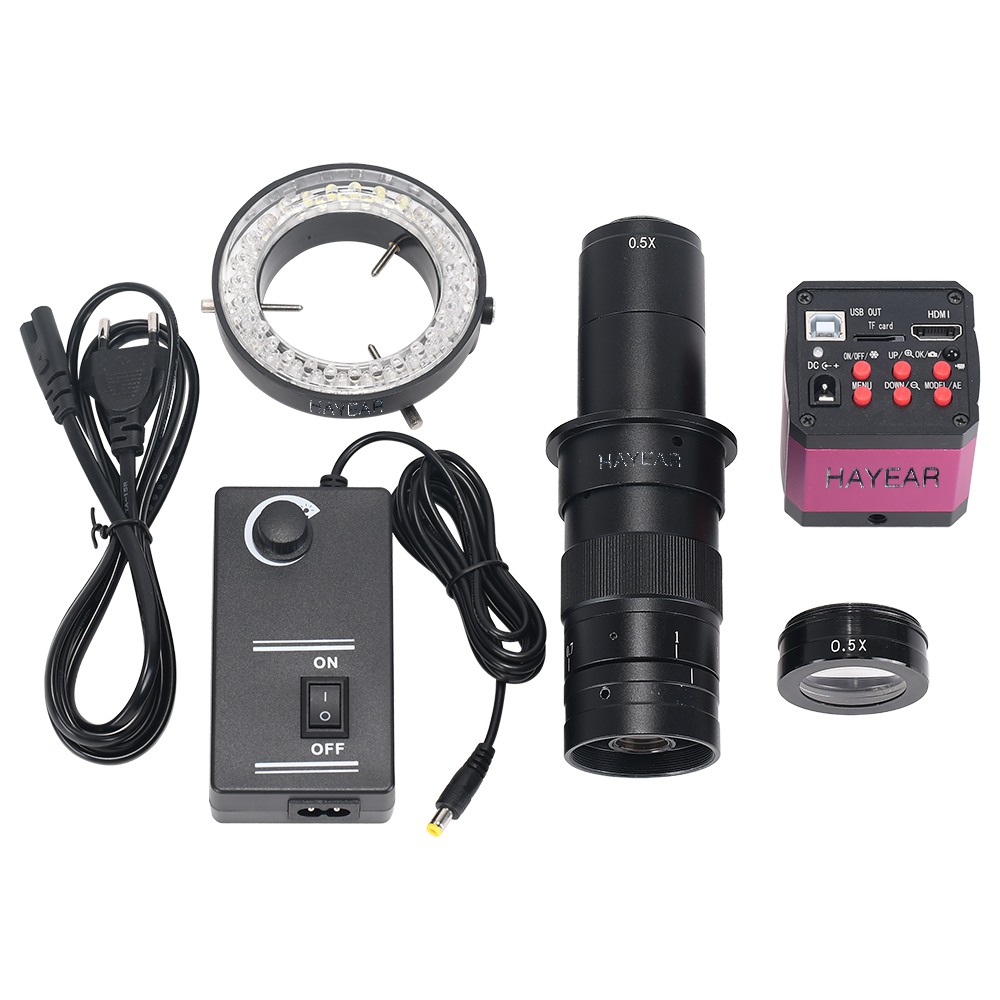

Package including:
1 x 37MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 180X C-Mount Objective Lens
1 x 60 LED Ring Light
1 x 0.5X Objective Barlow
