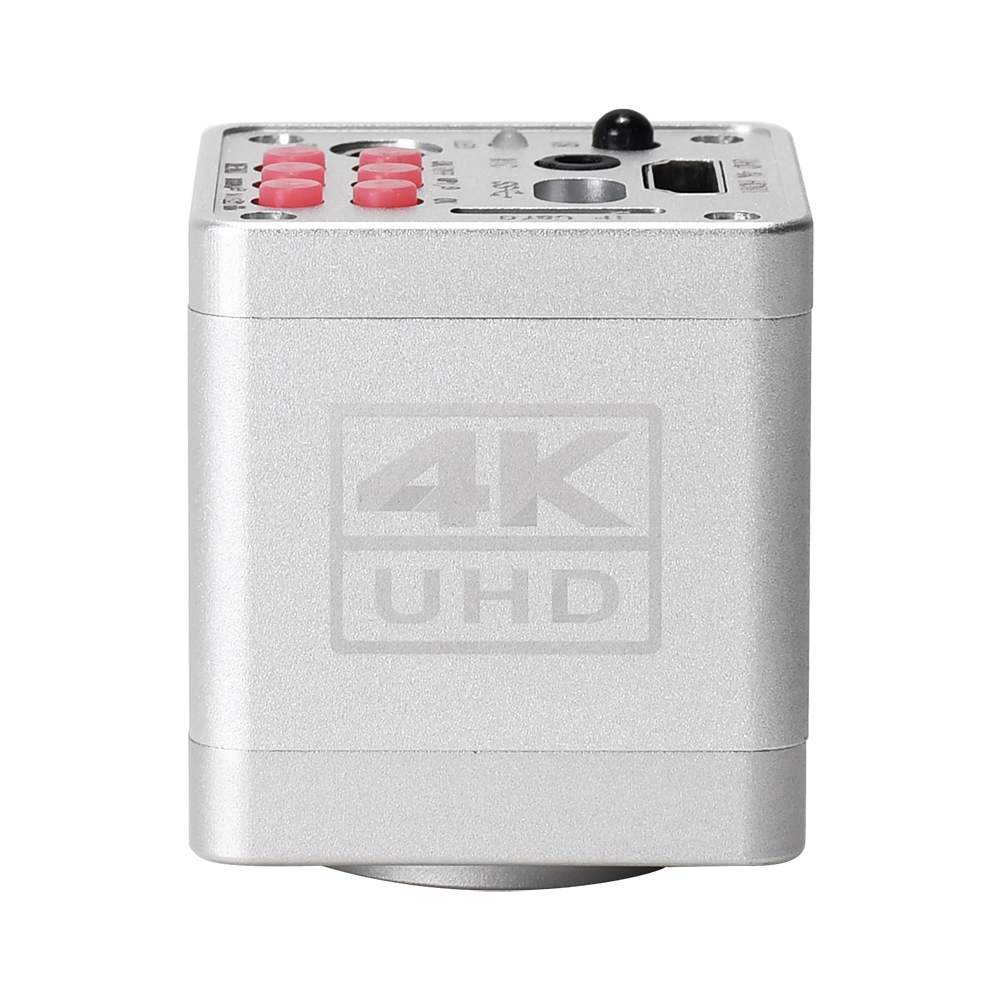

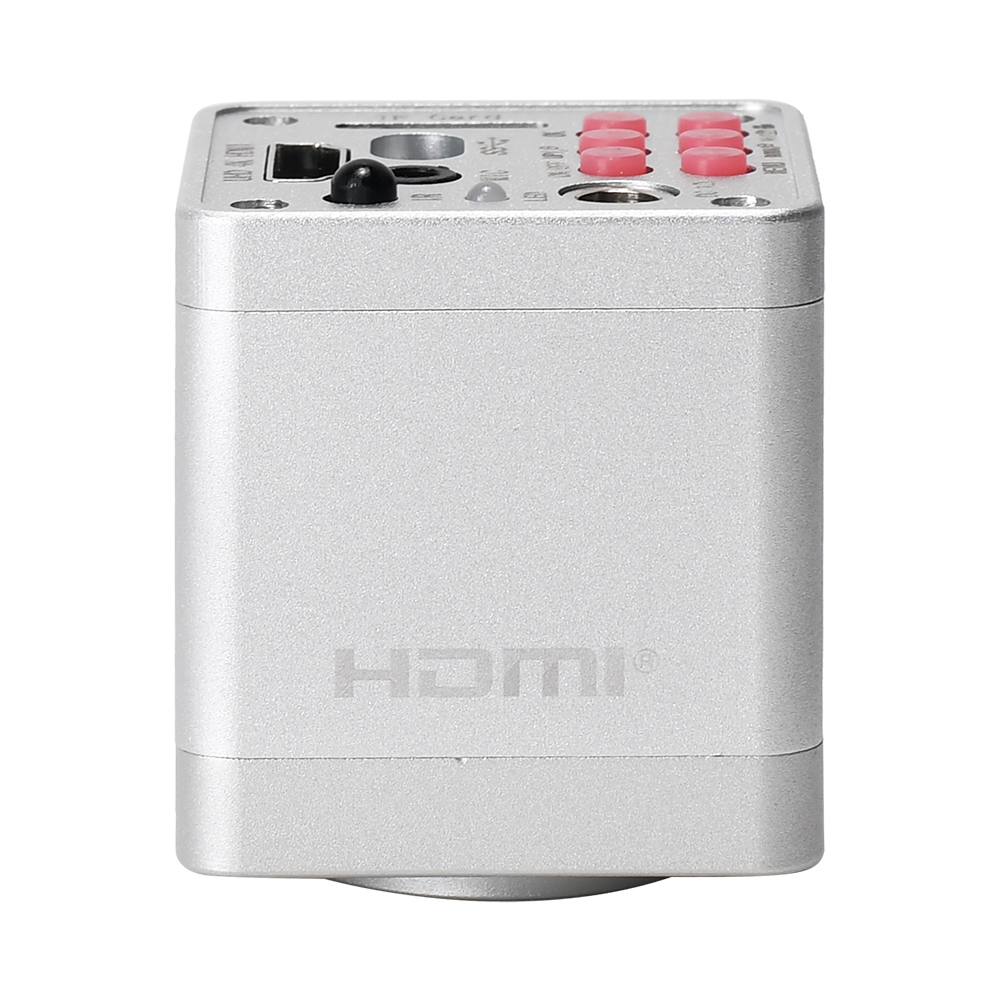

This is UltraHD 4K industrial camera,The resolution is 3840 x 2160 pixels,,Adopt standard HDMI interface,It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection,Use HDMI splitter to project to a large FHD TV for the best display.
Model: HY-6110
Sensor: SONY CMOS 1/1.8 IMX678 Sensor
Video Output Interface: Camera with HDMI USB2.0 two output
HDMI OutPut Resolution: 4K@30FPS / 1080p@30FPS
USB-PC OutPut Resolution: 3840x2160 @30FPS; 2592x1944 @40FPS;2592x1944 @40FPS;2084X1536 @60FPS; 1920x1080P @60FPS
Pixel size: 2.0μm × 2.0μm
Housing: metal
HDR: Support HDR,Multiple exposure HDR, Digital overlap HDR
Definition: FULL HD
Housing: metal

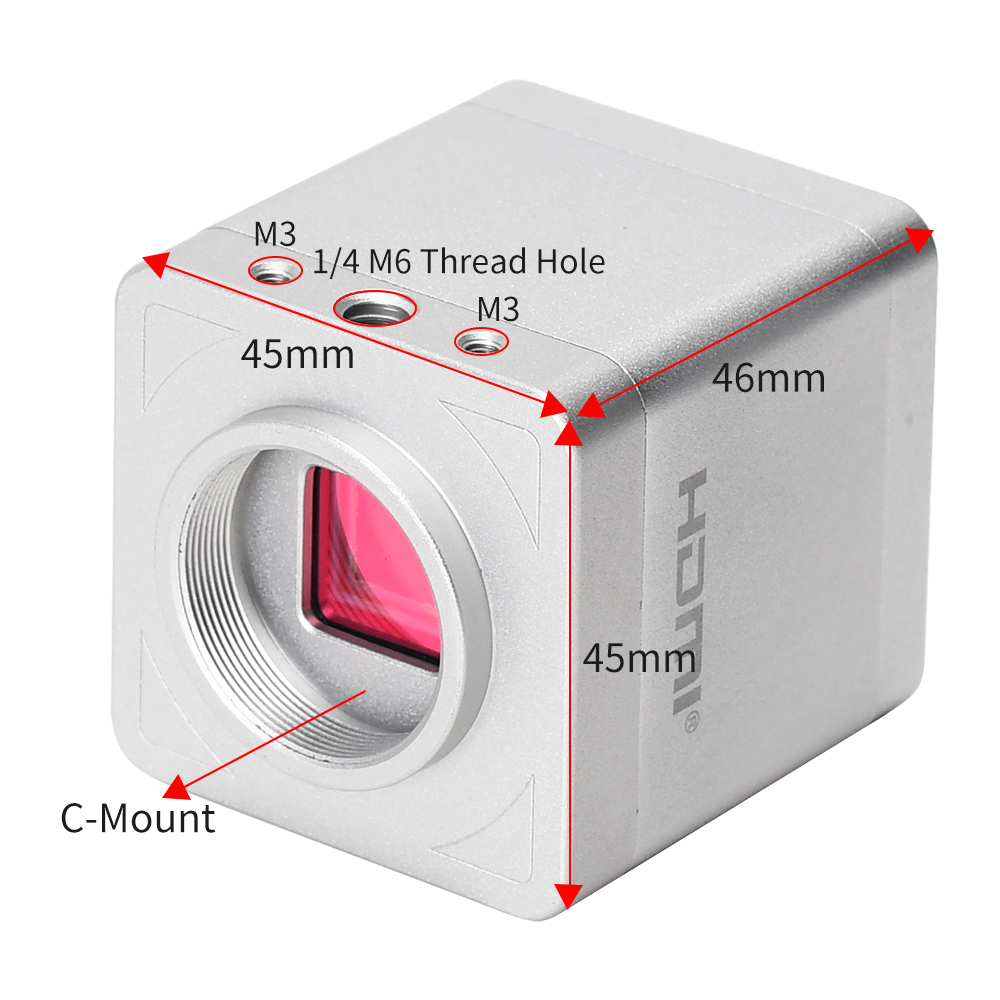

Lens: C / CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto / manual
Color: R / G / B adjustable
Film and recor d: Support
Cross cursor: Support multi-color, size adjustable
PC Support:Windows / Miac PC Software with Measuring Function
Image Measurement:Support Measurement
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines / vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 256G

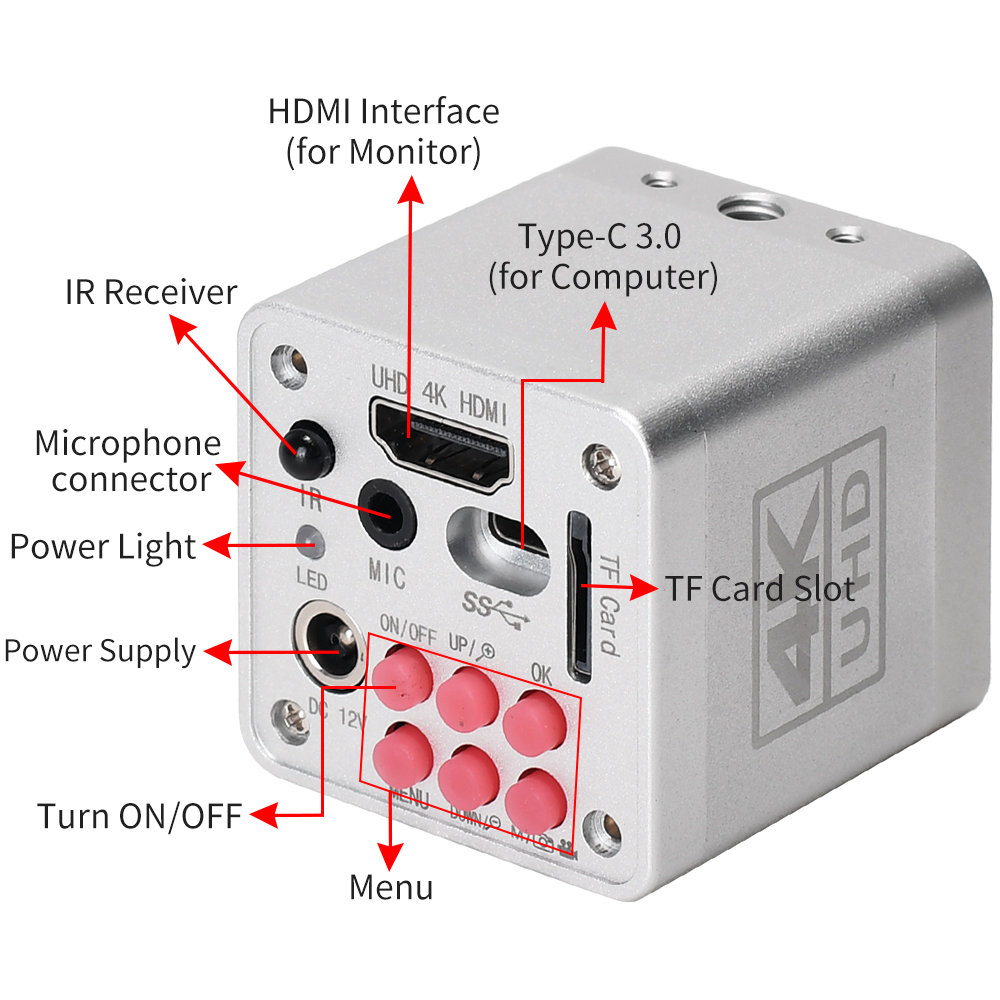

HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

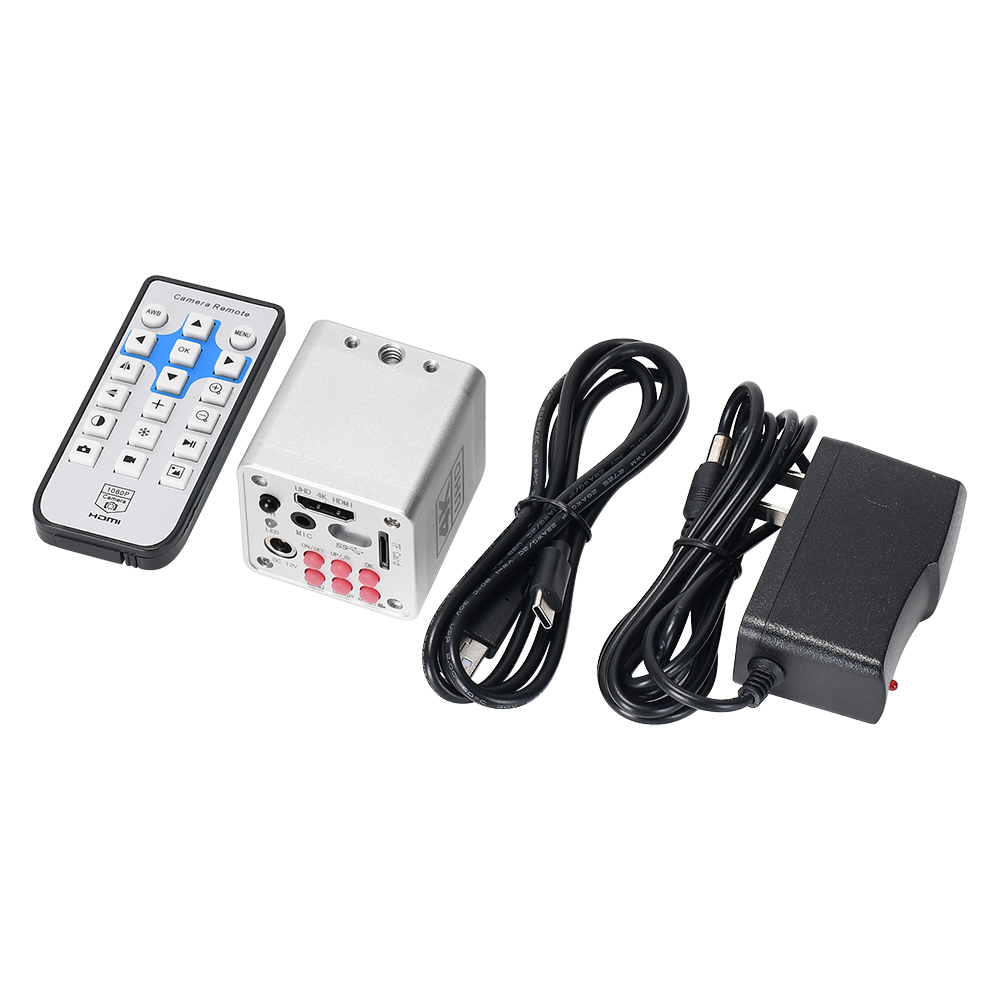

Package including:
1 x 4K Microscope Camera
1 x Power supply.
1 x USB cable
1 x HDMI cable
1 x Remote control
|
