Microscope Camera Kit >> 11.6" Inch HD USB Digital Industry Video Microscope Camera Set + Big Boom Stand Universal Bracket +180X C-MOUNT Lens+144 LED Light
View Larger Image
Share your images of this product

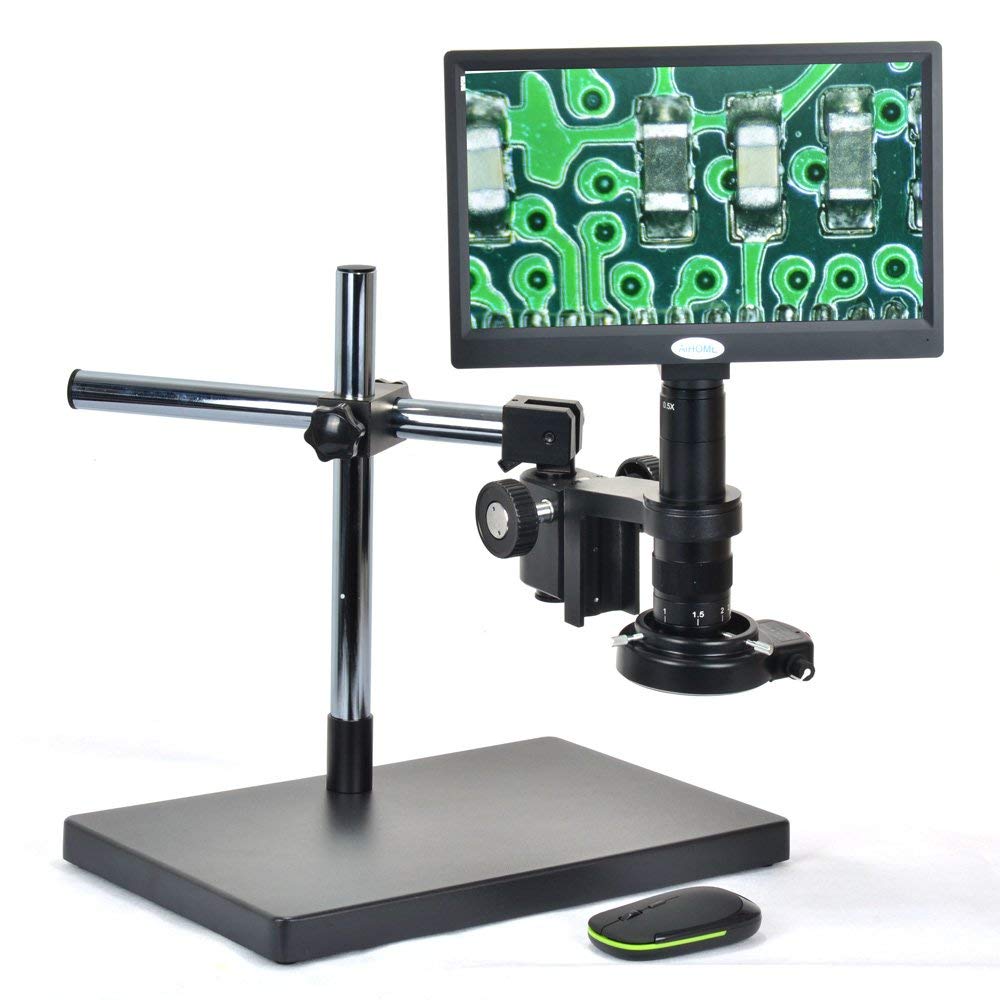

11.6" Inch HD USB Digital Industry Video Microscope Camera Set + Big Boom Stand Universal Bracket +180X C-MOUNT Lens+144 LED Light
Price : US $ 518.21 679.99

SKU : 1807171315
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
Specification:
1/2.5 " CMOS Sensor
5Megapixels (2592x1944), Selectable
Camera Interface: C-mount
Video Format:1024x768 / 15FPS , 640x480 / 30FPS
White Balance Setting:Manual / Automatic / Preset
Pixel Size:2.2μm x 2.2μm
ADC:12bit
Dynamic Range:66.5dB
SNRMAX: 40.5dB
Shutter Type:Electronic rolling shutter (ERS)

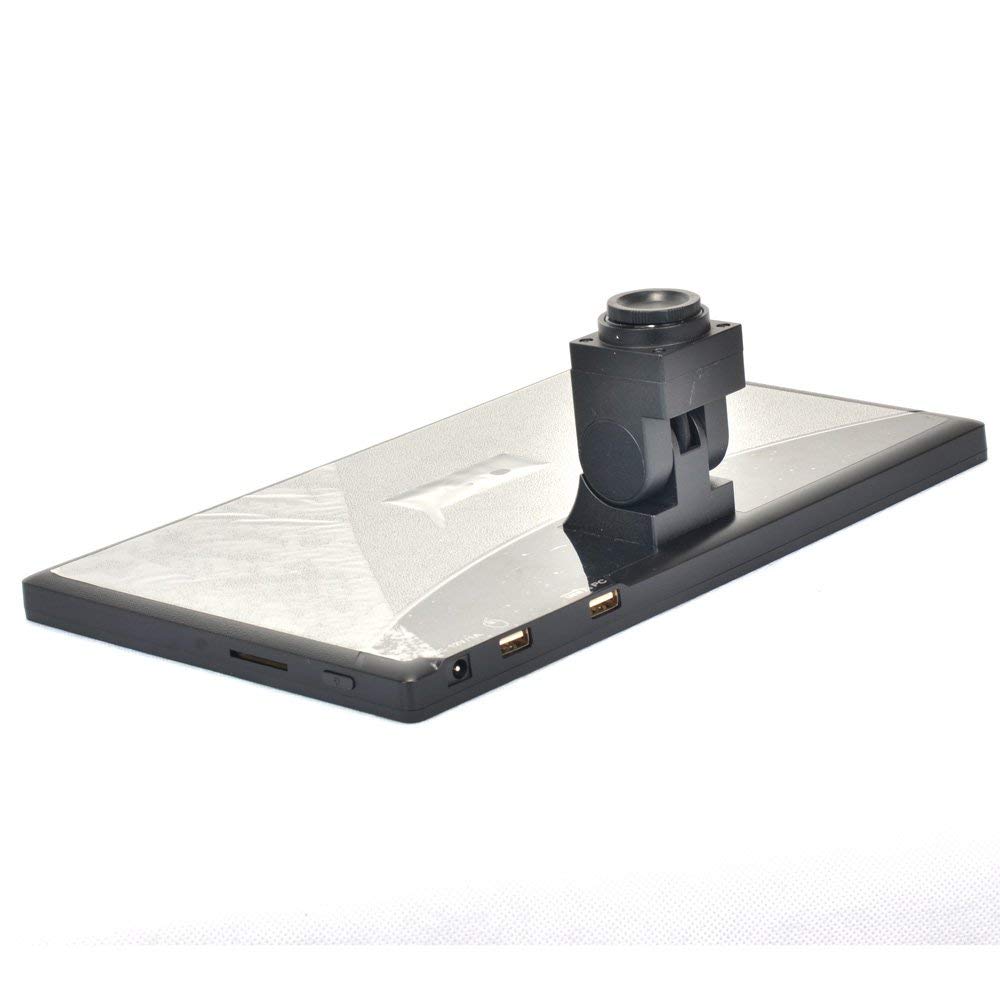

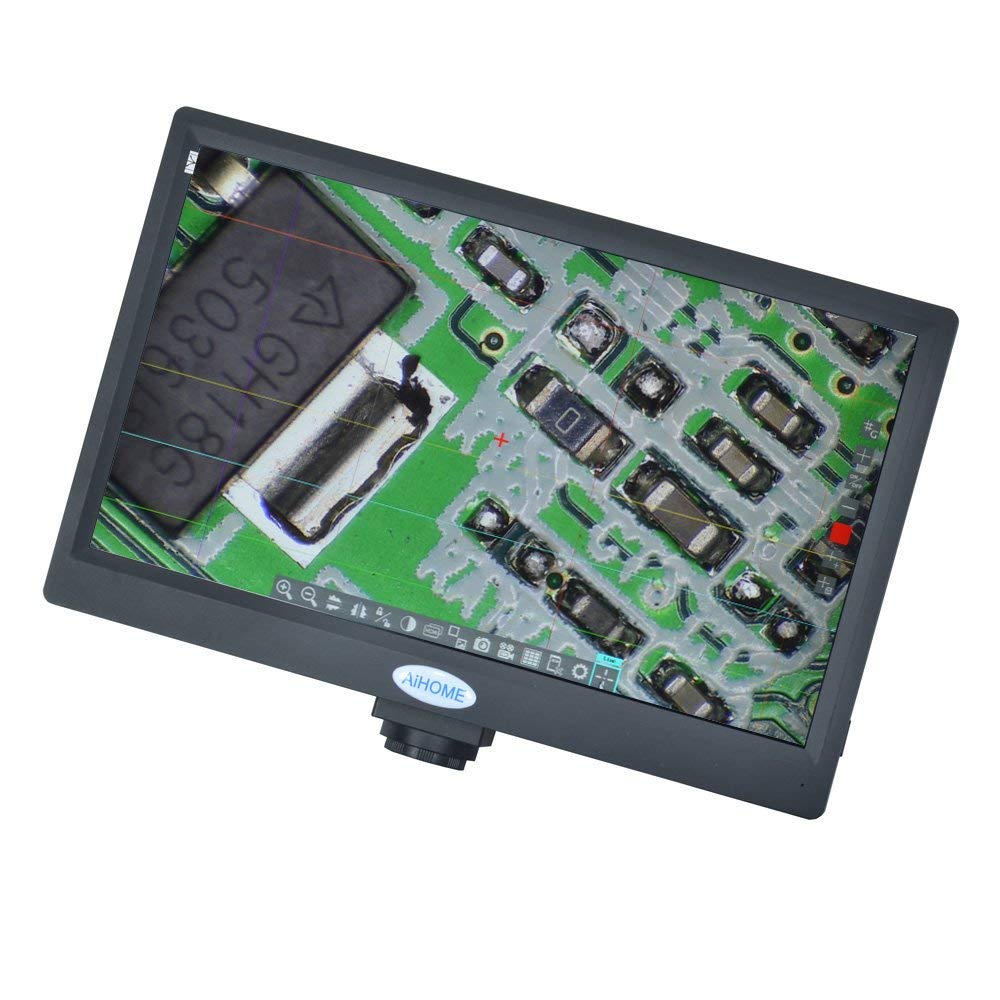

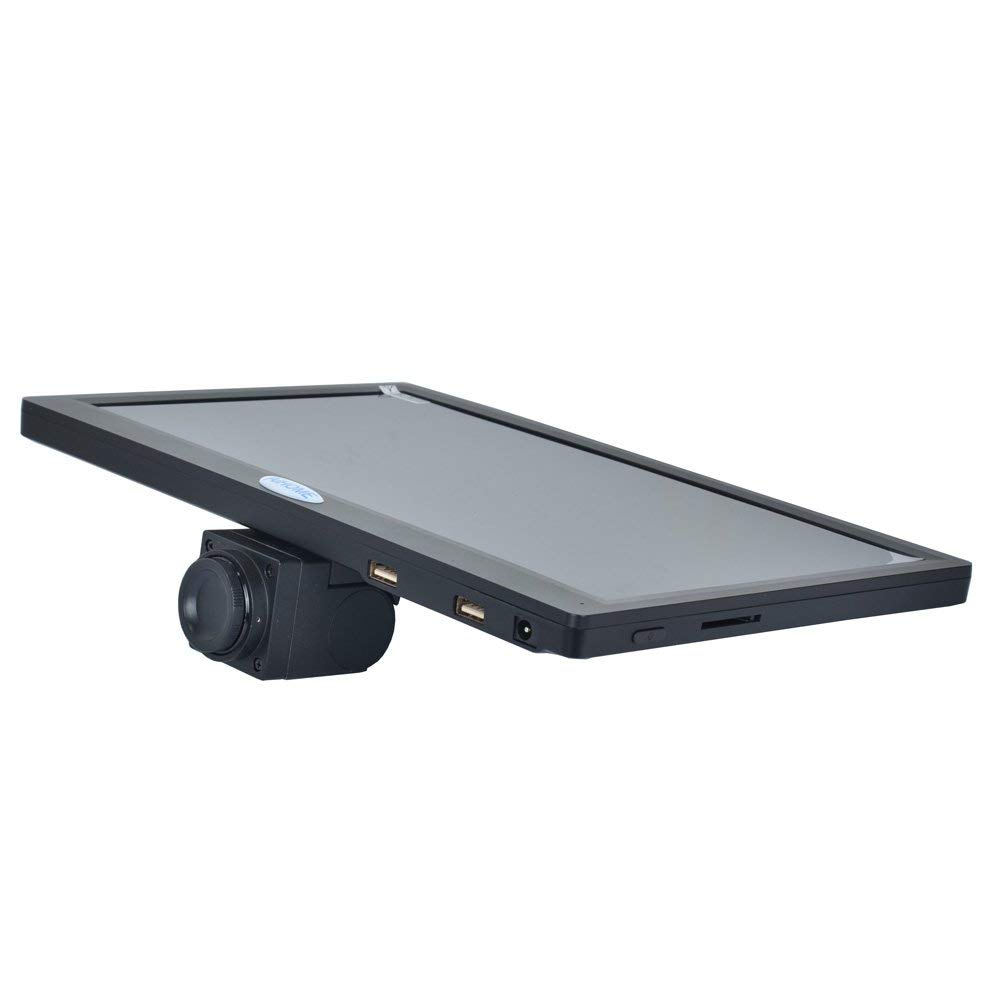

11.6 inch Display Screen:
Screen Size: 11.6 inch (Panasonic)
Panel type:a-Si TFT-LCD
Display mode: IPS Contrast ratio:1000:1 (Typ.)
Resolution: 1920(RGB)×1080 Pixels
Active area:256.896×144.504 mm
Viewing angle: 85/85/85/85 (Min.)(CR≥10)(left/right/top/bottom)
Panel brightness: 400 cd/m⊃2; (Typ.)
Response time: 26 (Typ.)(Tr+Td) (ms)
Visual angle: horizontal 160/ vertical 150
Scanning frequency:60Hz

C-MOUNT Lens:
Zoom c-mount Lens

Magnification Power by 0.12 - 2X (about 8 - 180X on the display)

Work distance:95-125mm

Visual field :2.4mm-32mm
Size: 115mm(L) x 40mm(DIA)
Weight: 500g

Package Content:
1 x Microscope Camera
1 x 180X C-mount Lens

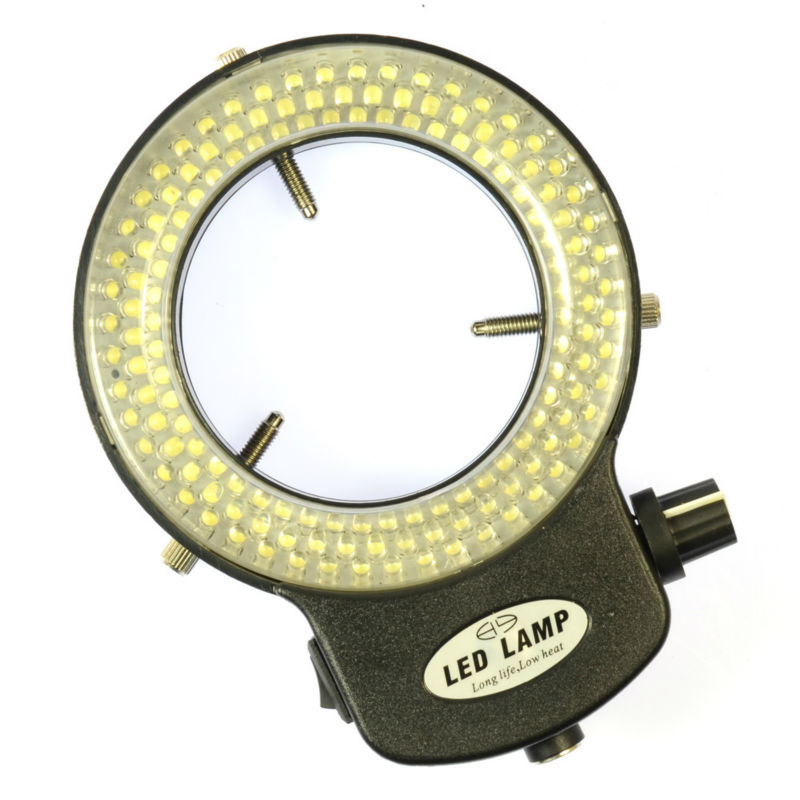

1 x 144 LED Light+ power adapter

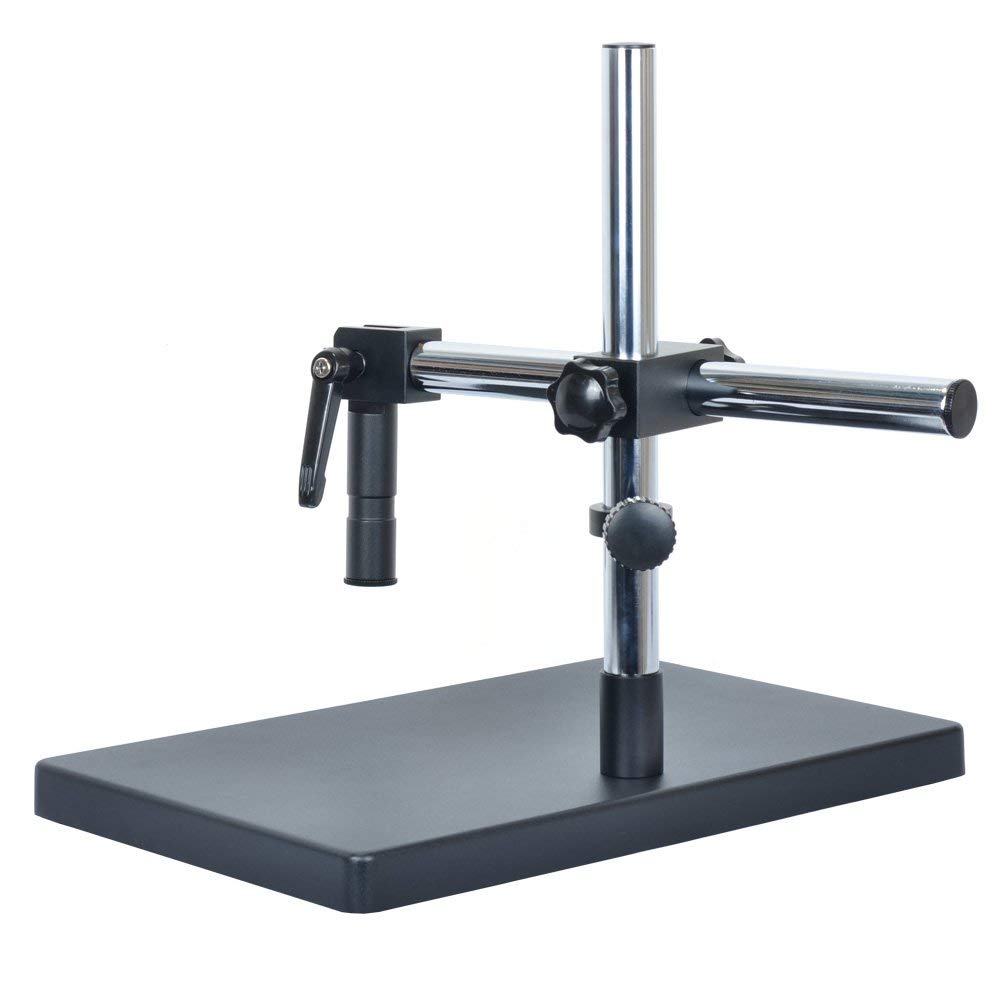

1 x Microscope Table Stand
1 x Power Supply
1 x USB line
