HDMI Camera >> 14MP 1080P 3 in 1 TV HDMI USB Industry Digital C-mount Microscope Camera TF Card Output for PCB LCD Lab HY-2307R
View Larger Image
Share your images of this product

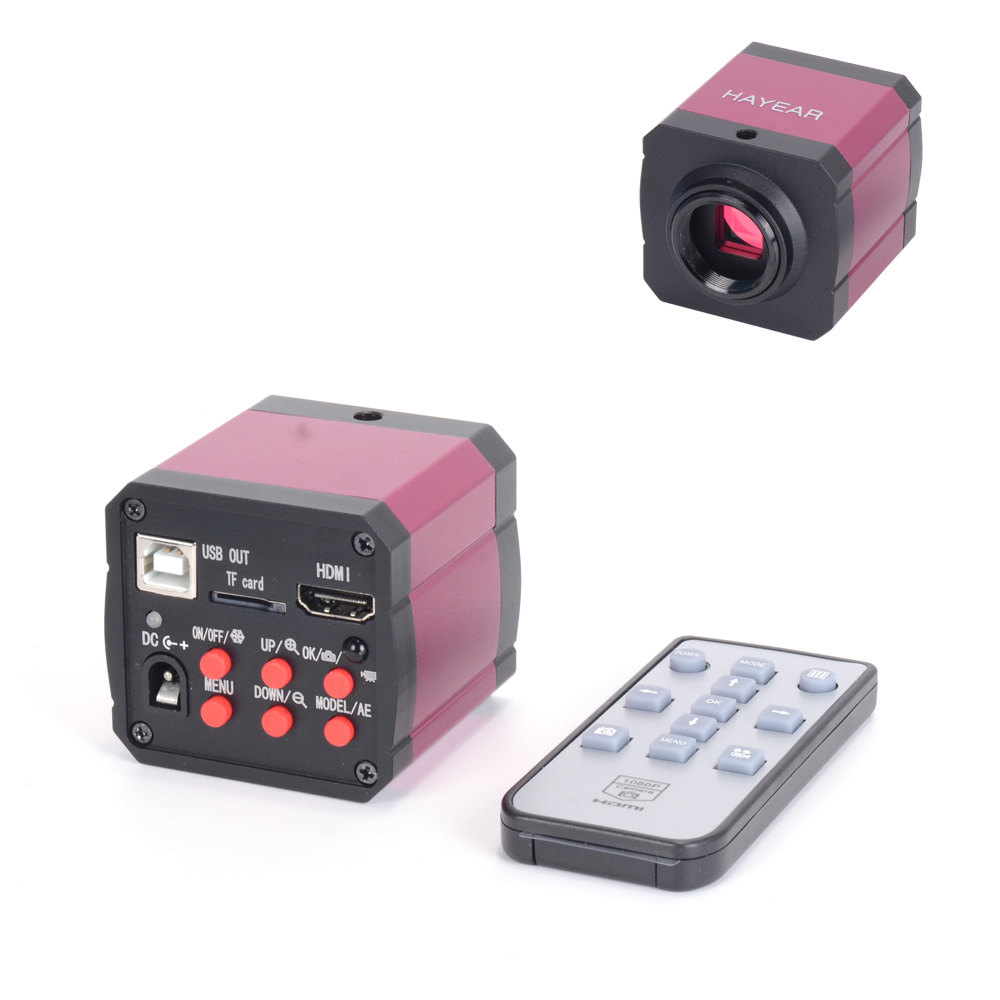

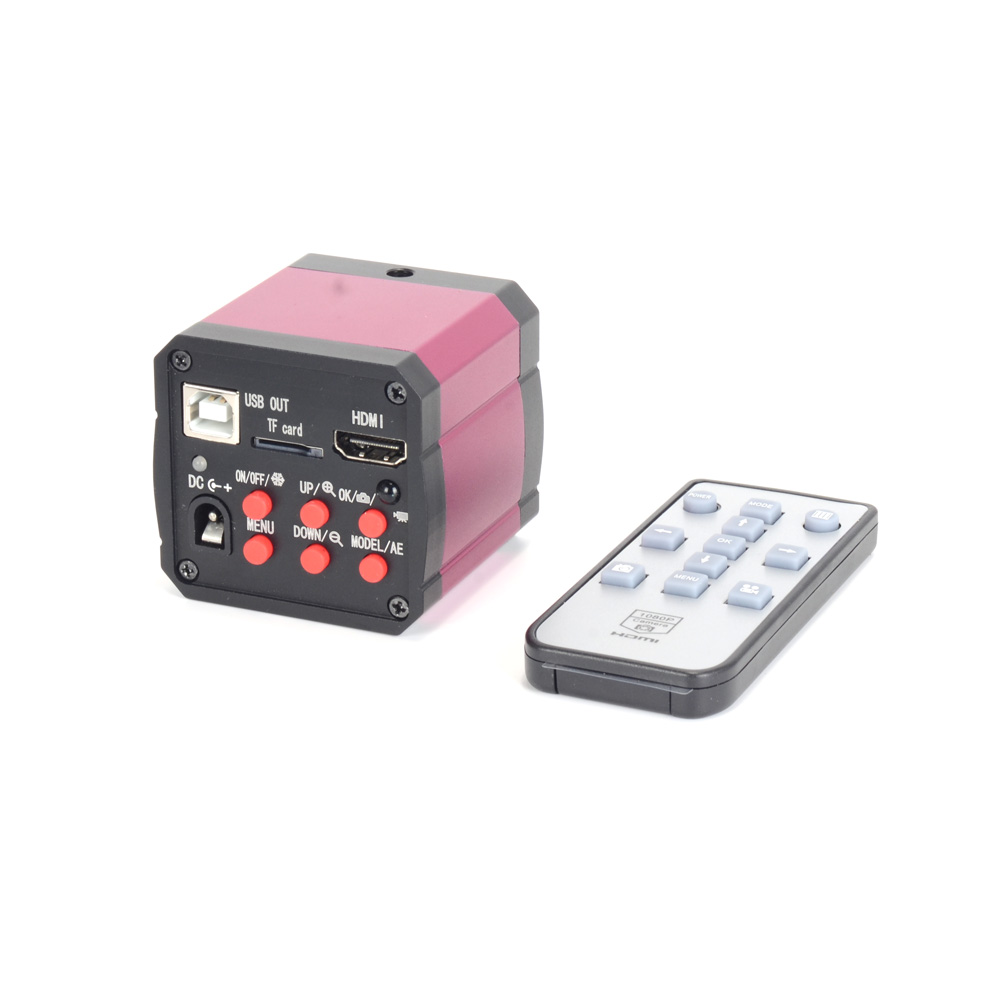

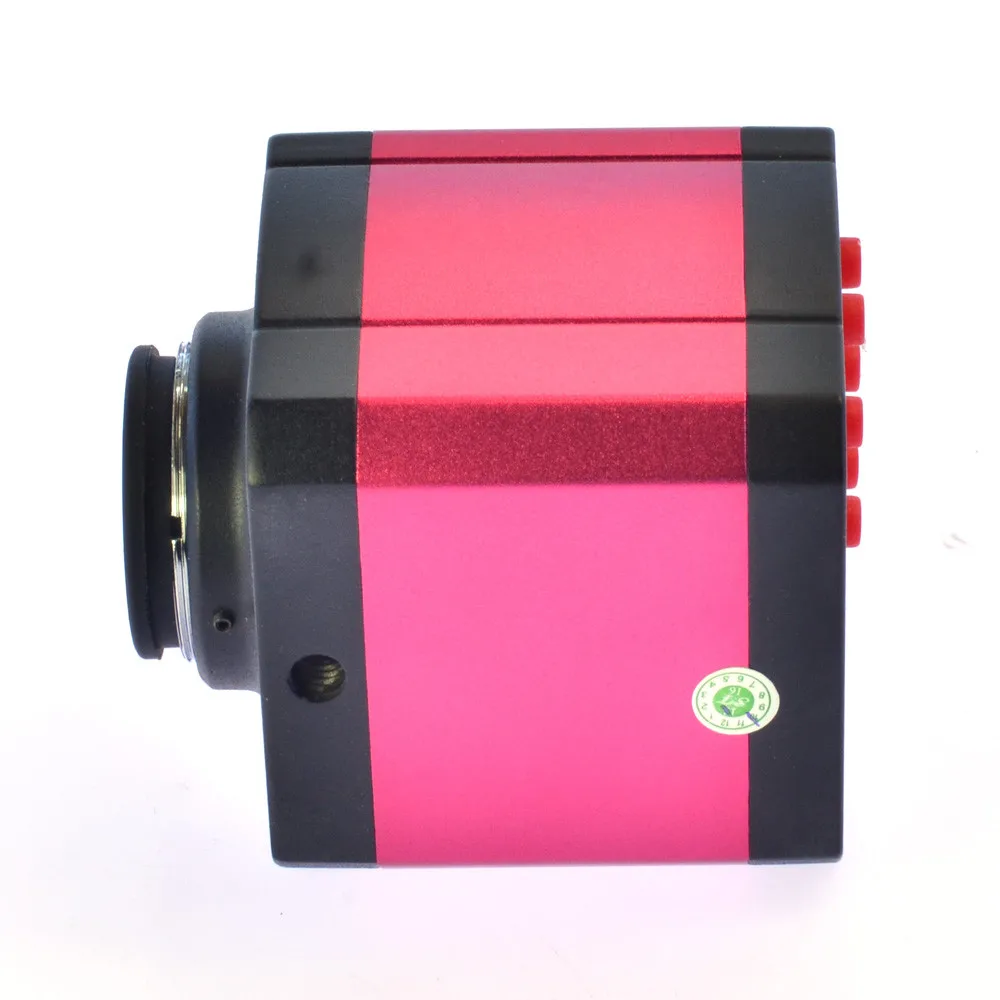

14MP 1080P 3 in 1 TV HDMI USB Industry Digital C-mount Microscope Camera TF Card Output for PCB LCD Lab HY-2307R
Price : US $ 99.89 135.00
SKU : 0911183457
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.
For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.



Image sensor: 14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 14 megapixel
Pixel size: 1.43*1.43um
Frame rate: 30fps
Definition: FULL HD
Image resolution: 2592x1944 @ 3fps (for TF Card), 1920x1080@ 20fps(for TF Card), 1280x720 @ 30fps (for FT card/ USB)
Video recorder: 1280 x720 @ 30fps (for TF Card/ USB)
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support

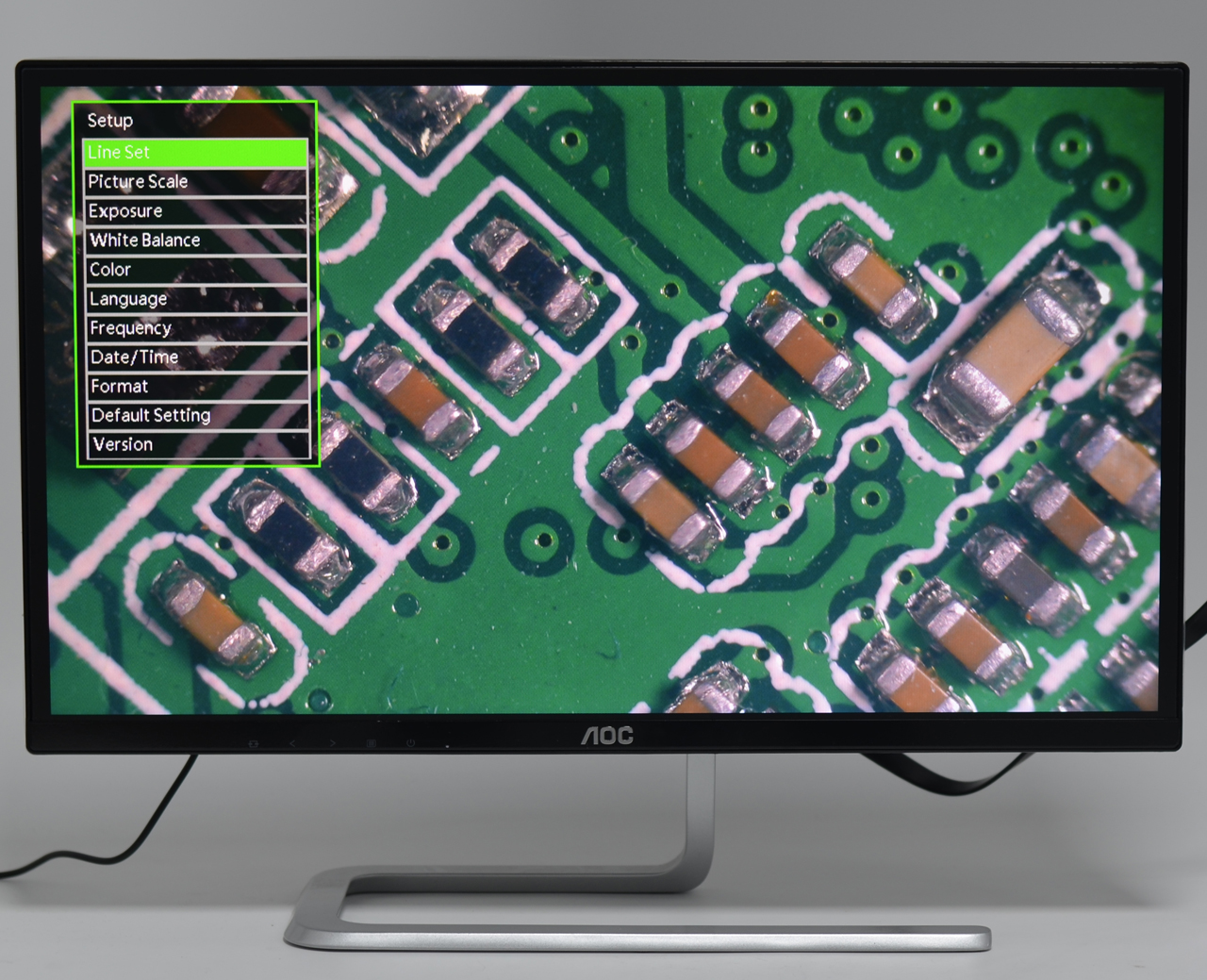

OSD: Support
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
SNR: Support
TF card interface: Max 32G
HDMI interface: Standard HDMI output (Type A)
Lens: CS
USB interface : Standard usb2.0 interface (Type B)


Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1280 *720 @ 30FPS (for TF Card)
USB Video resolution: 1280 *720 @ 30FPS
Morror: Left/right,Up/Down
OSD: English/Chinese

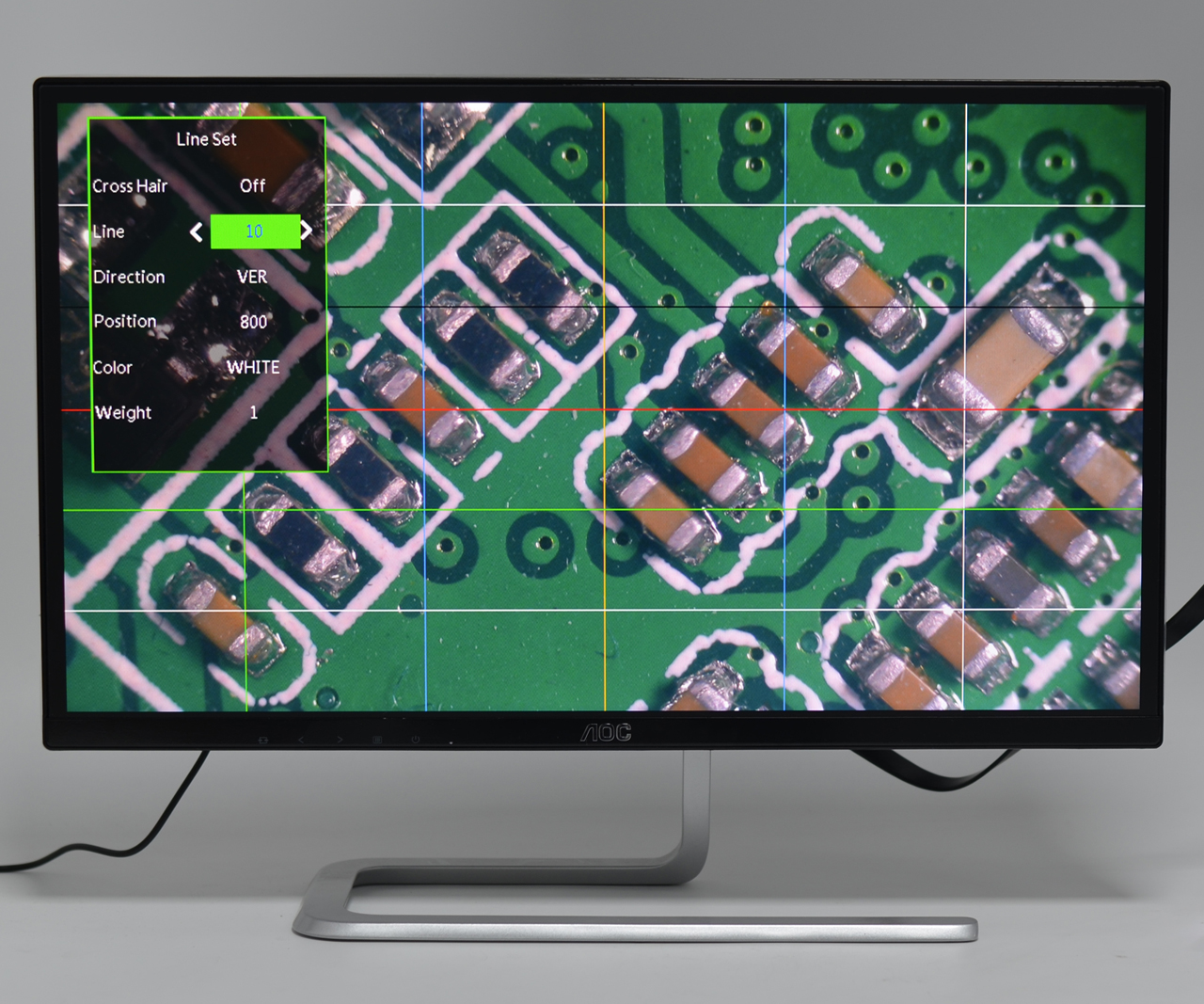

Line: different color,4 horizontal line , 4 vertical line,any positions

TF card storage is only for HDMI output. USB output will be storaged in PC.

Package Content:

  1 x Microscope Camera
1 x 12V Power supply

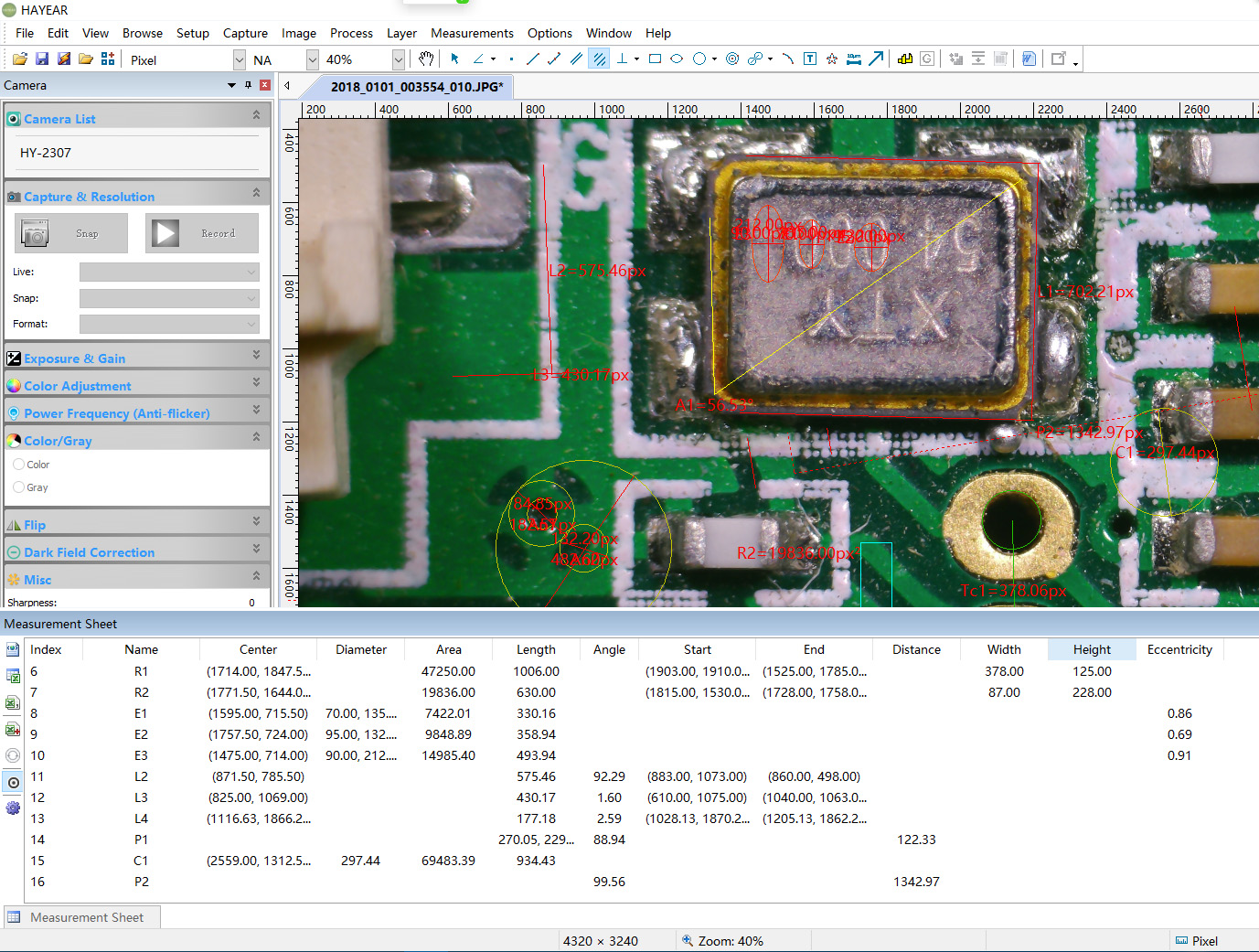

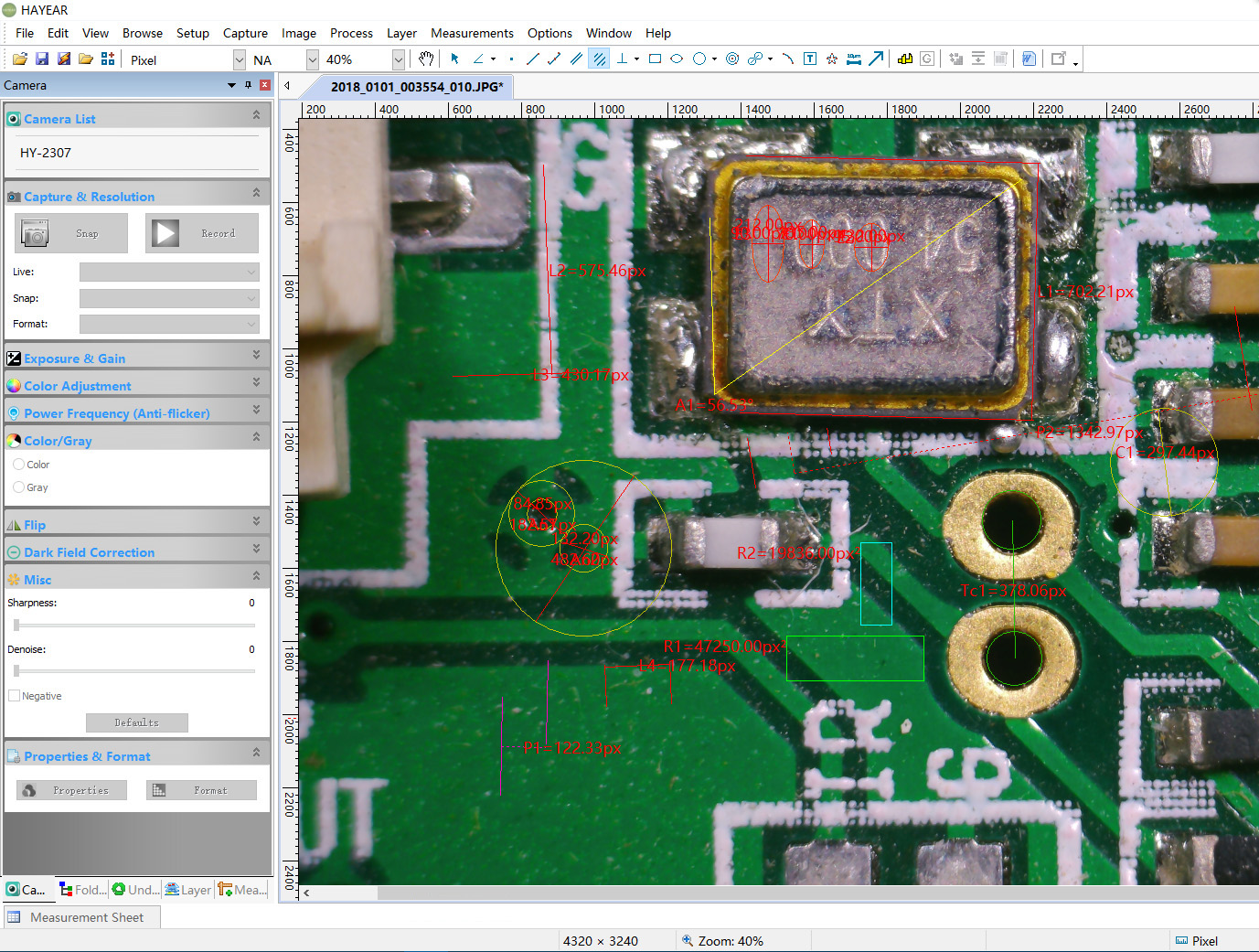

1 x Software DISC
