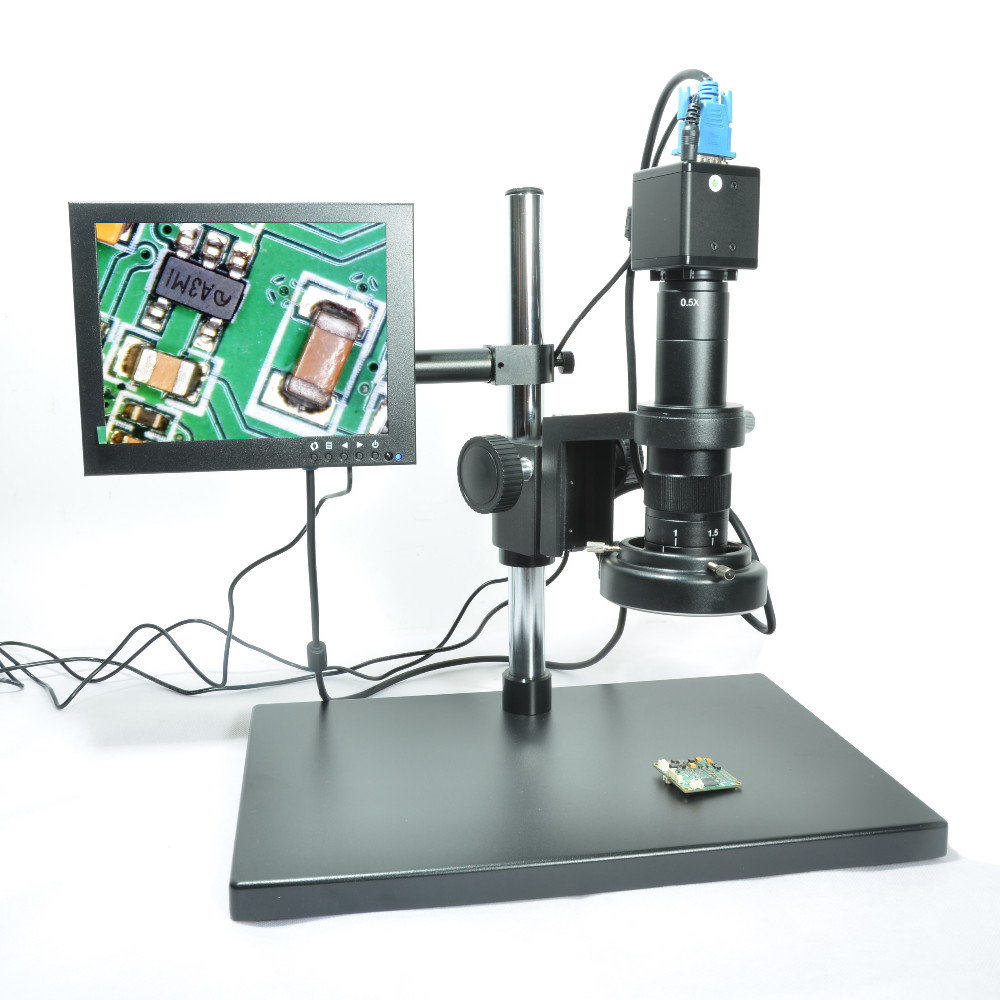

Microscope Camera Kit >> 2.0MP HD VGA Industry Microscope Camera + 180X C-mount Lens + 8" Inch LCD Screen + Stand Holder + 144 LED Light for PCB
View Larger Image
Share your images of this product


2.0MP HD VGA Industry Microscope Camera + 180X C-mount Lens + 8" Inch LCD Screen + Stand Holder + 144 LED Light for PCB
Price : US $ 199.00 239.00

SKU : 0911173020
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.


Feature:

High Quality, High Resolution, Clear Images
Japan CMOS
Certificate:CE,FC,RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Control function: Brightness, Contrast and color balance,saturation,sharp degrees,Cb(blue)offset,Cr(red) offset,cursor,vertical,horizontal,negative
Supply VGA output ports.
We sell much to the industry factory, then the works can see the problems directly in the Monitor.


Specification:

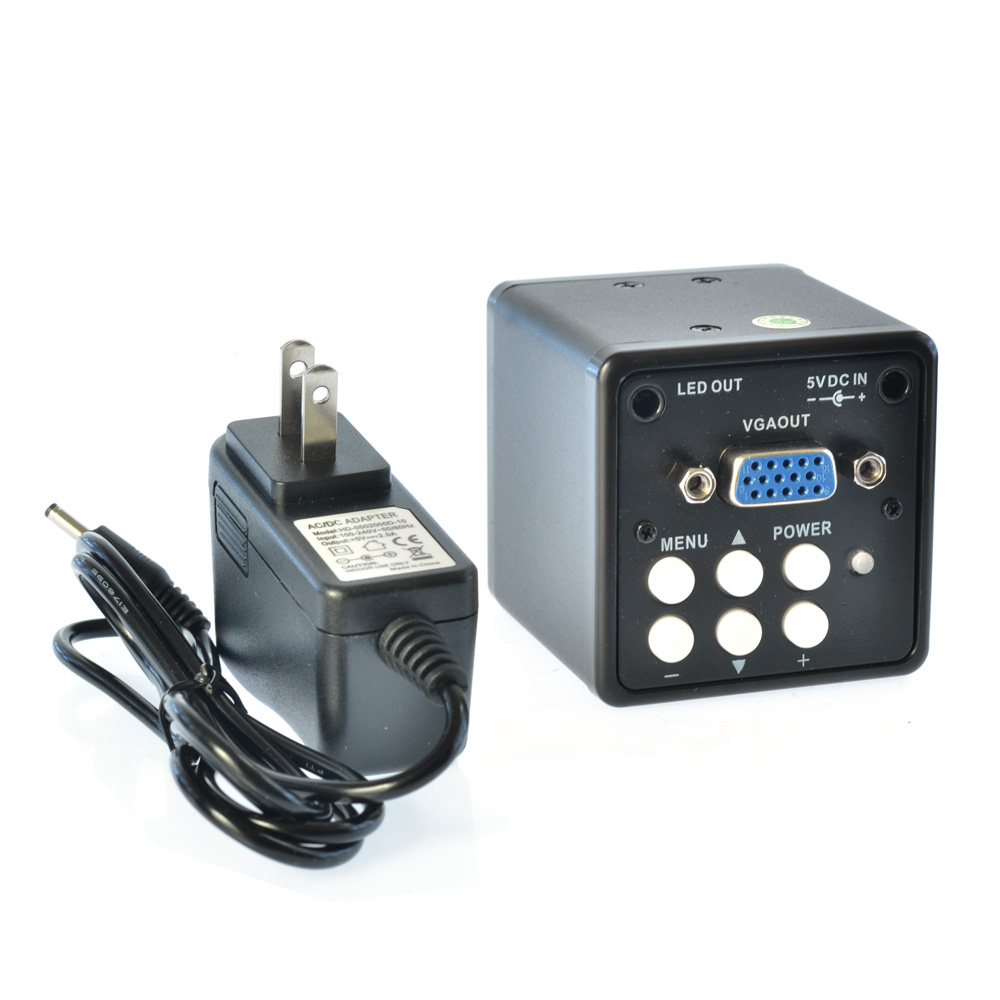

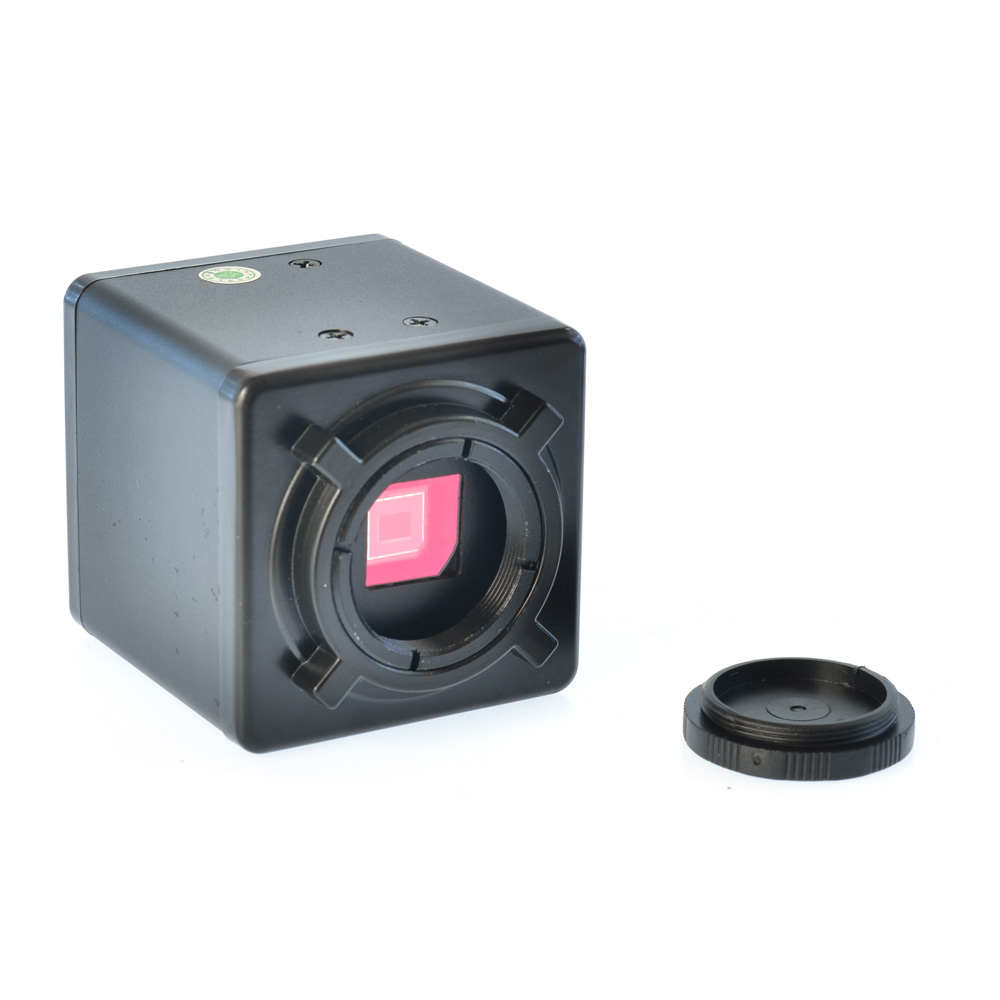

Model: Camera with VGA output
Sensor: 2.0MP,1/3 inch
Full Resolution: 1600X1200 (UXGA)
VGA output: 1024X768 60Hz,1280X1024 60Hz,1600X1200 60Hz
White Balance: Auto

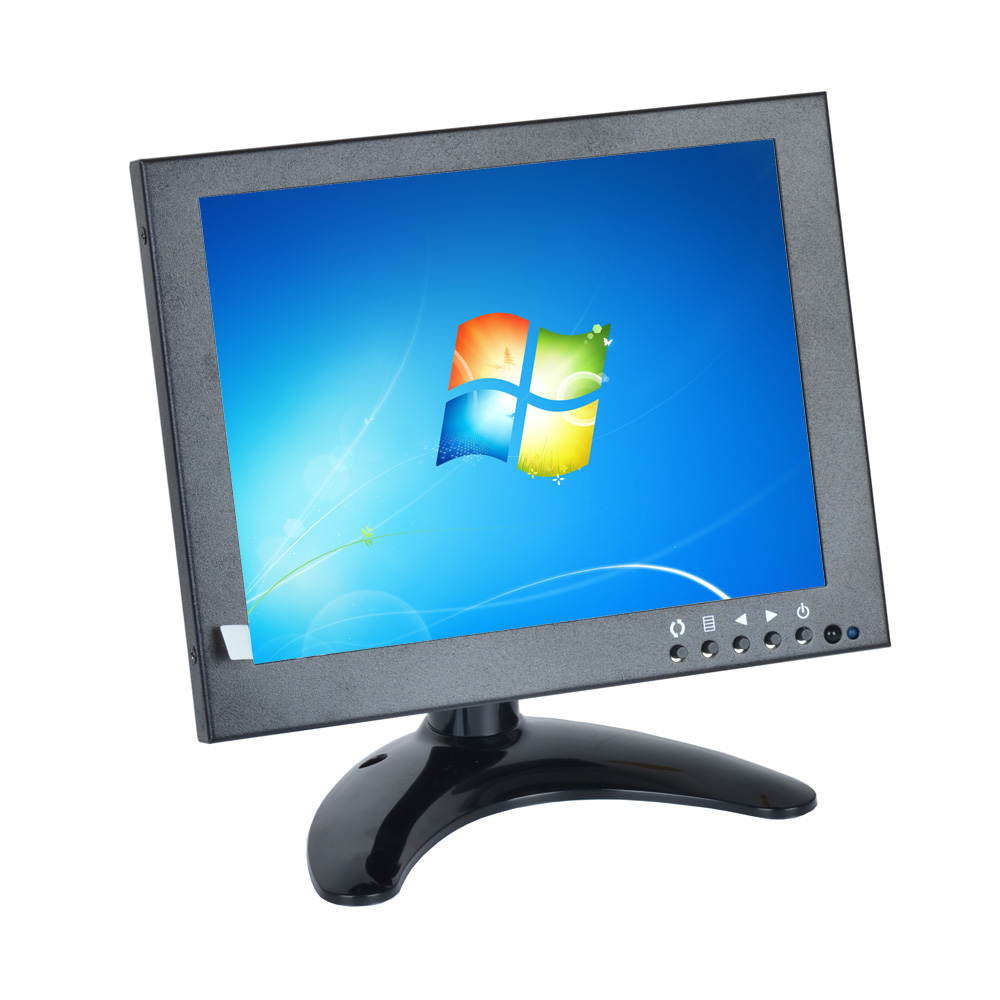

8" HDMI TFT LCD Color Monitor:

8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"

Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms

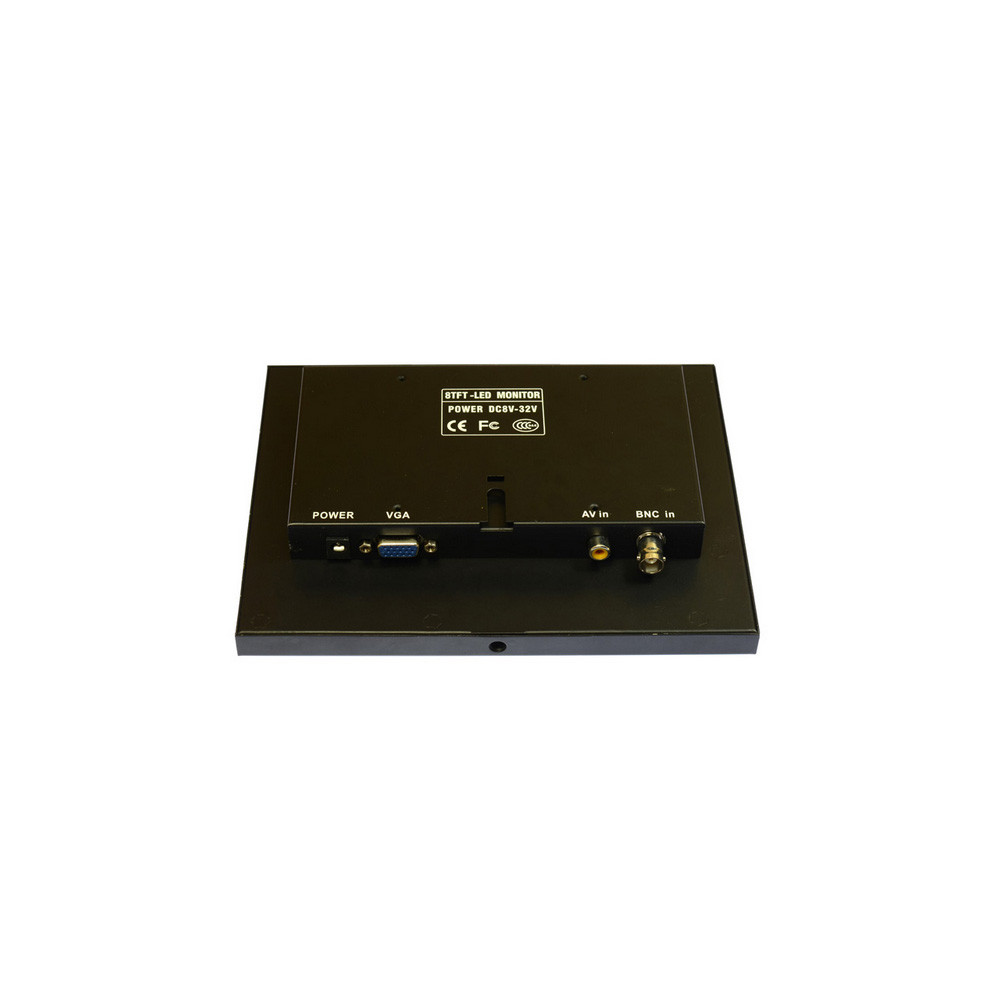

Video Input : HDMI, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

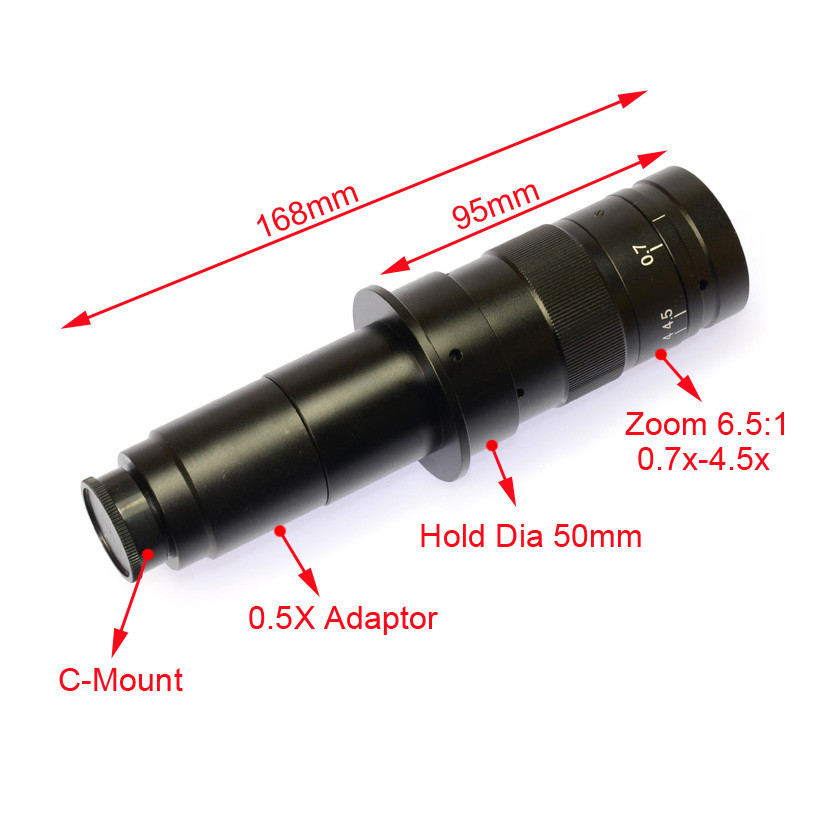

C-MOUNT Lens:

Working distance: 95mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g


144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm



Package Content:
1 x Microscope Camera
1 x Power Supply
1 x 180X C-mount Lens

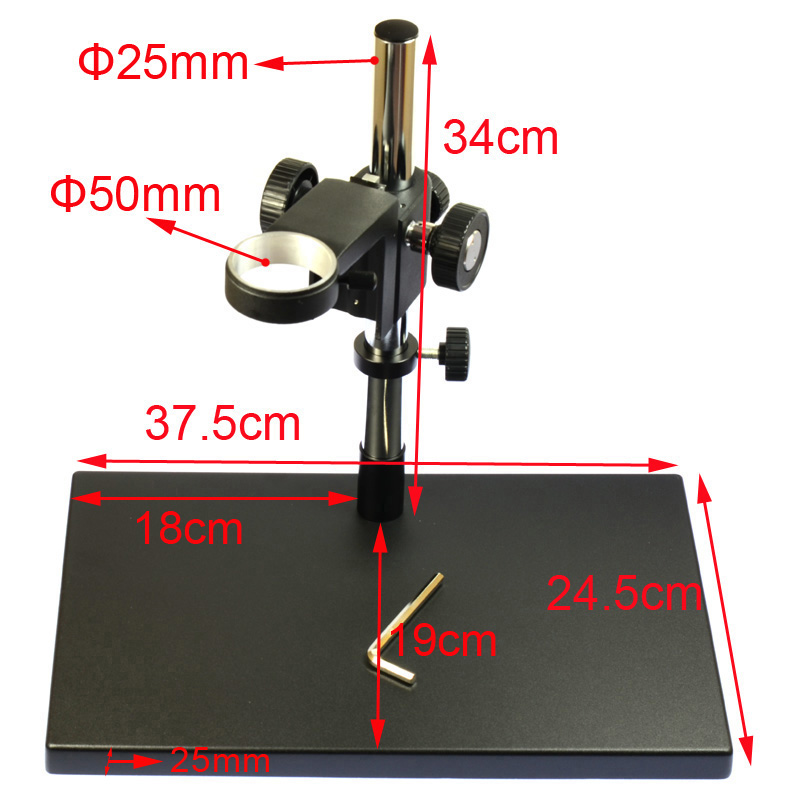

1 x Table Stand
1 x 144 LED Light with Power Adapter
1 x 8" LCD Monitor
