Microscope Camera Kit >> 16MP HDMI USB Digital Industry Microscope Camera 100X Zoon C-mount Lens 8GB TF Card 7" inch HDMI LCD Monitor
View Larger Image
Share your images of this product

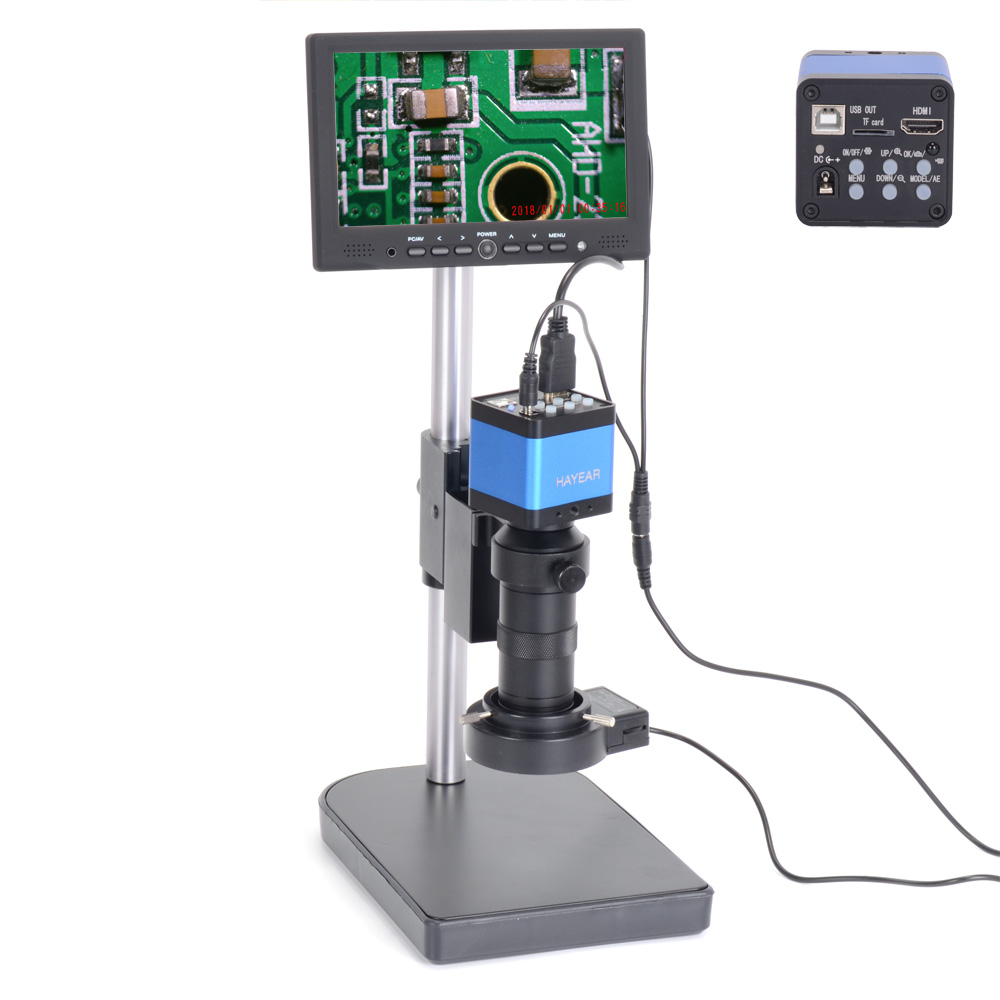

16MP HDMI USB Digital Industry Microscope Camera 100X Zoon C-mount Lens 8GB TF Card 7" inch HDMI LCD Monitor
Price : US $ 228.36 278.56

SKU : 1812151202
Inventory :
 Add to wish list
For bulk order or wholesale business,please contact us!
Accept PayPal payment only.
Please give me your detail address and Tel No. for safe shipping when you make the payment
Item will be shipped within two working days after payment received.Delivery time is around 7-20 business days to most countries.

Noting:1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

Specification:
Image sensor:16MP CMOS sensor 1/2.3''
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Video format: MP4
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
Lens: C or CS
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)


7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)

C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)

40 LED Adjustable Ring Light:
Lighting direction changeable
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-580mm

Camera Table Stand
With Dual Ring:42mm(diameter) ,23mm(diameter)
Large table stand for stereo microscopes
29cm microscope high pillar
Size: 22cm x 15.5cm x 33cm(height)
Item weight: 1200g
Material: Alloy Aluminum

Package Including:
1 x Microscope Camera
1 x Microscope Power supply
1 x 8GB TF Card
1 x Software DISC
1 x 40-LED Ring Light
1 x LED Power Adapter
1 x 100X Industry Zoom C-mount Lens
1 x USB Cable
1 x 7 inch HDMI LCD Monitor
1 x HDMI monitor
1 x Camera Stand
